Audi Q3: Inner Door Seal, ‏Removing and Installing

Audi Q3 (8U) 2011-2018 Service Manual / Body / Body Exterior / Rear Doors / Inner Door Seal, ‏Removing and Installing

Removing

- Remove the rear sill panel strip. Refer to → Body Interior; Rep. Gr.70; Passenger Compartment Trim; Sill Panel Strip, Removing and Installing.

- Remove the upper and lower B-pillar trim. Refer to → Body Interior; Rep. Gr.70; Passenger Compartment Trim; B-Pillar Trim, Removing and Installing.

- Remove the C-pillar trim panel. Refer to → Body Interior; Rep. Gr.70; Passenger Compartment Trim; C-Pillar Trim Panel, Removing and Installing.

- Remove the inner door seal from the body flange.

Installing

Install in reverse order of removal. Note the following:

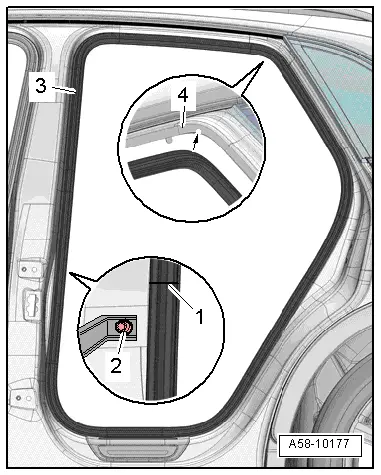

- Install the inner door seal molded piece -3- with the vulcanized point -1- between the upper door hinge and door arrester -2- on the body surface.

- Place the inner door seal molding piece in the area of the upper B-pillar on the body surface -4--arrow-.

- Place the inner door seal molding piece on the complete body surface and press in.

Audi Q3. A58-10177

Outer Door Seal, Removing and Installing

  Note

  • The door outer seal is completely bonded and can only be replaced.
  • The vehicle and the outer door seal must be at room temperature.
  • The adhesive surfaces must free of dust and grease. Clean with Cleaning Solution -D 009 401 04-.
  • Apply Bonding Agent -D 355 205 A2- on the surface on the body side using the Applicator -D 009 500 25- and let dry.
  • The water drain hole is found on the underside of the door if it was installed correctly.

Special tools and workshop equipment required

  • Roller -3356-
  • Adhesive Strip Remover -VAS6349-
  • Cleaning Solution -D 009 401 04-

Removing

- Remove the rear window frame trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Window Frame Trim Panel, Removing and Installing.

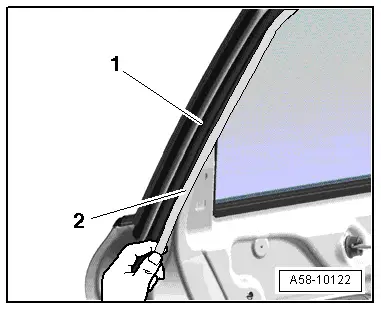

- Mark the position of the outer door trim on the door frame using adhesive tape.

Audi Q3. A58-10122

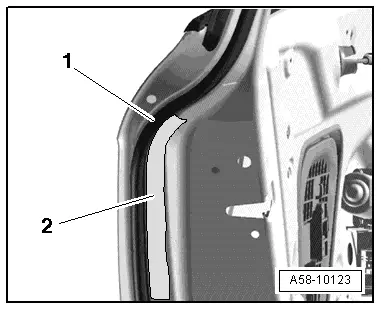

- Mark the position of the outer door seal in the area of the door lock with adhesive tape.

Audi Q3. A58-10123

  Note

Secure the B-pillar in the area of the door arrester using adhesive tape, so that the paint will not be damaged.

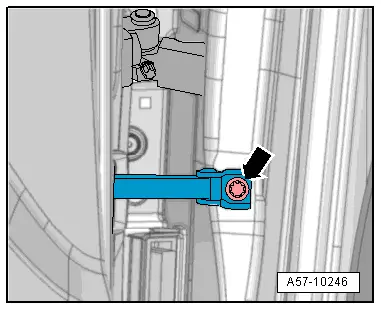

- Remove the door arrester bolt -arrow-.

Audi Q3. A57-10246

- Remove the outer door seal from the door frame a bit and cut with commercially available scissors.

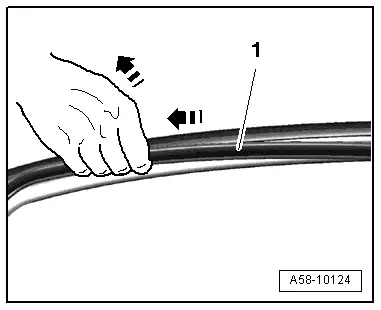

- Turn the outer door seal lengthwise -arrow- in steps and remove as shown in the illustration.

  Note

Pulling the seal laterally will loosen the adhesive and then it is possible to remove the door outer seal from the door without any leftover adhesive on it.

- Remove the door seal completely.

Installing

Install in reverse order of removal. Note the following:

- Remove the adhesive residue using Adhesive Strip Remover -VAS6349-.

- Clean the adhesive surface on the door with Cleaning Solution -D 009 401 04-.

- Apply Bonding Agent -D 355 205 A2- on the adhesive surface of the door using the Applicator -D 009 500 25- and let dry.

  Caution

  • If the Adhesive -D 355 205 A2- dries longer than 3 hours, then it must be primed again.
  • Do not stretch the seal when installing it.
  • The seal may come off wherever it is stretched or crushed along the bottom or on the B-pillar and C-pillar.
  • So that the outer door seal does not loosen or slide, do not close the door for two hours.
  • The vehicle must be in room temperature.

Audi Q3. A58-10124

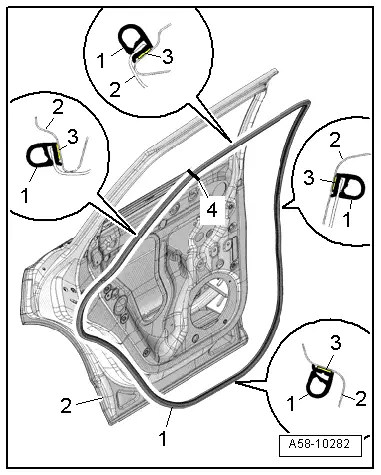

- The start marking -4- of the outer door seal -1- must be placed on the door B-pillar -2- at the top.

  • When the outer door seal is positioned correctly the drain holes in the seal are at the bottom.

- Remove the protective film from the adhesive tape -3-.

- Adhere a new seal and press on using Roller -3356-.

  • Resting time of the vehicle is a minimum of two hours with the doors open at room temperature.

- Install the door arrester. Refer to → Chapter "Door Arrester, Removing and Installing".

- Install the rear window frame trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Window Frame Trim Panel, Removing and Installing.

Audi Q3. A58-10282
