Audi Q3: Charging the 12 volt vehicle battery

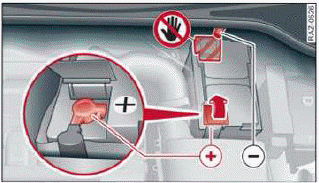

Fig. 152 Engine compartment with battery: connections
for charger and jump start cable
Observe the safety precautions.
Requirement: only use chargers with a maximum
charging current of 14.8 volts. The battery cables
remain connected.
The battery is located in the engine compartment.
The ground point (-) is always located on
the vehicle body.
- Switch off the ignition and all electrical equipment.
- Open the hood.
- Open the cover on the positive terminal
fig. 152.
- Clamp the terminal clamps on the charger correctly
onto the positive terminal/jump start
connection (+) and the ground point (-).
- Insert the power cable for the charger into the
socket and switch the charger on.
- At the end of the charging process, switch the
charger off and pull the power cable out of the
socket.
- Remove the charger terminal clamps.
- Close the cover on the positive terminal.
- Close the hood.
WARNING
Tips
- Only charge the battery through the connections
in the engine compartment.
- Read all of the manufacturer's instructions
for the charger before charging the battery.
