Audi Q3: Driver/Front Passenger Seat Heating Element -Z6-/-Z8-, Removing and Installing

Audi Q3 (8U) 2011-2018 Service Manual / Body / Body Interior / Seat Upholstery, Covers / Driver/Front Passenger Seat Heating Element -Z6-/-Z8-, Removing and Installing

Driver/Front Passenger Seat Heating Element -Z6-/-Z8-, Removing and Installing, Fabric Cover Versions

Procedure

- Separate the seat cover from the seat cushion. Refer to → Chapter "Seat Pan Cover and Cushion, Separating".

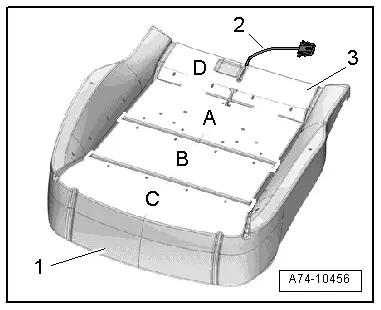

Standard seat and folding seat:

- Disconnect the wire -2- directly from the old heating element -3-.

  Note

The old heating elements remain on the cushion -1- and will be covered over by the new heating element.

Audi Q3. A74-10456

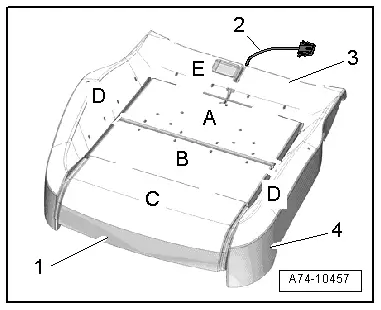

Sport seat:

- Cut the wire -2- directly from the old heating element -3-.

  Note

The old heating elements remain on the seat cushion -1-, -4- and will be covered over by the new heating elements.

Procedure for all seat versions:

- Align the new heating elements on the seat cushion.

- Remove protective films from the heating elements in succession, taking care not to damage the heating elements.

- Bond heating elements in the sequence -A, B, C, D and E- so that they align with the old heating elements and are wrinkle free.

- Route the connecting wires to the individual heating elements in the base of the gaps.

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Seat Heating Element, Seat Heating/Backrest Heating for versions with Fabric Cover".

Audi Q3. A74-10457

Driver/Front Passenger Seat Heating Element -Z6-/-Z8-, Removing and Installing, Leather Cover Versions

Procedure

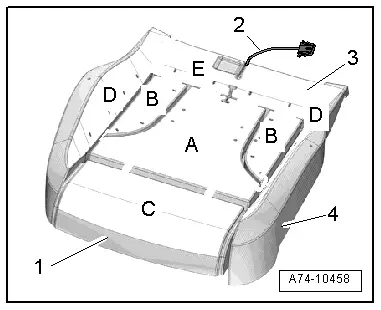

- Separate the seat cover from the seat cushion. Refer to → Chapter "Seat Pan Cover and Cushion, Separating".

- Cut the wire -2- directly from the old heating element -3-.

  Note

The old heating elements remain on the seat cushion -1-, -4- and will be covered over by the new heating elements.

- Align the new heating elements on the seat cushion.

- Remove protective films from the heating elements in succession, taking care not to damage the heating elements.

- Bond heating elements in the sequence -A, B, C, D and E- so that they align with the old heating elements and are wrinkle free.

- Route the connecting wires to the individual heating elements in the base of the gaps.

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Seat Heating Element, Seat Heating/Backrest Heating for versions with Leather Cover".

Audi Q3. A74-10458

Driver/Front Passenger Backrest Heating Element -Z7-/-Z9-, Removing and Installing

Driver/Front Passenger Backrest Heating Element -Z7-/-Z9-, Removing and Installing, Fabric Cover Versions

Procedure

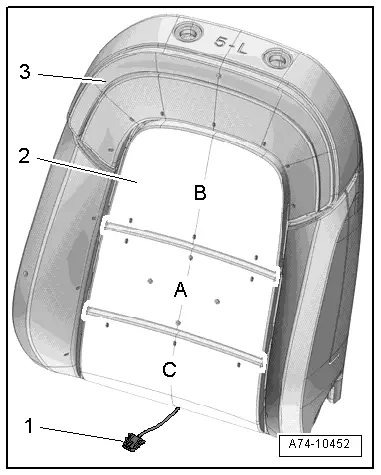

- Separate the backrest cover and backrest cushion. Refer to → Chapter "Backrest Cover and Cushion, Separating".

- Cut the electric wire -1- directly from the old heating element -2-.

  Note

The old seat heating element remains on the backrest cushion -3- and the new seat heating element is bonded over it.

- Align the new heating element on the backrest cushion.

- Peel the protective film off the heating element. Be careful not to damage the heating element.

- Bond heating elements in the sequence -A, B, and C- so that they align with the old heating elements and are wrinkle free.

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Seat Heating Element, Seat Heating/Backrest Heating for versions with Fabric Cover".

Audi Q3. A74-10452

Driver/Front Passenger Backrest Heating Element -Z7-/-Z9-, Removing and Installing, Leather Cover Versions

Procedure

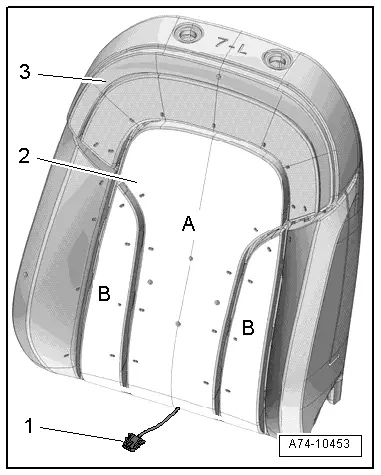

- Separate the backrest cover and backrest cushion. Refer to → Chapter "Backrest Cover and Cushion, Separating".

- Cut the electric wire -1- directly from the old heating element -2-.

  Note

The old seat heating element remains on the backrest cushion -3- and the new seat heating element is bonded over it.

- Align the new heating element on the backrest cushion.

- Peel the protective film off the heating element. Be careful not to damage the heating element.

- Bond heating elements in the sequence -A and B- so that they align with the old heating elements and are wrinkle free.

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Seat Heating Element, Seat Heating/Backrest Heating for versions with Leather Cover".
