Audi Q3: Door Handle, Removing and Installing

Lock Cylinder, Removing and Installing

Removing

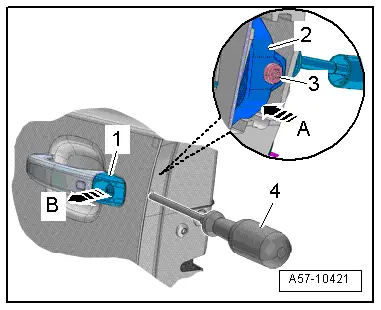

- Remove the sealing plugs.

- Remove the clamping screw -3- until it stops using a screwdriver -4-.

- Press the lock cylinder retaining bracket -2- inward -arrow A-.

- Remove the lock cylinder -1- from the mounting bracket -arrow B-.

  Note

If the lock cylinder cannot be pressed out, slide the key into it and remove it with the key turned slightly.

Installing

Install in reverse order of removal. Note the following:

- Slide the lock cylinder into the mounting bracket and then check if the door lock closing and opening position is activated.

Audi Q3. A57-10421

Lock Cylinder Cap/Housing, Removing and Installing

Removing

- Remove the lock cylinder/housing. Refer to → Chapter "Lock Cylinder, Removing and Installing".

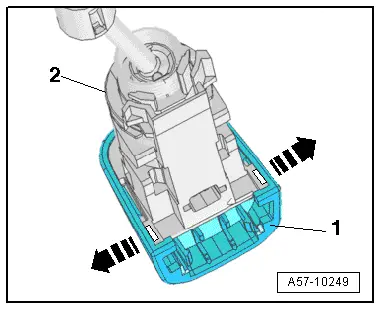

- Spread the clips -arrows- and remove the cover cap -1- from the lock cylinder/housing -2- using an awl if necessary.

Installing

Install in reverse order of removal. Note the following:

- Press the lock cylinder cover cap on until it engages audibly.

- Install the lock cylinder/housing. Refer to → Chapter "Lock Cylinder, Removing and Installing".

Audi Q3. A57-10249

Door Handle, Removing and Installing

Removing

- Remove the lock cylinder/housing. Refer to → Chapter "Lock Cylinder, Removing and Installing".

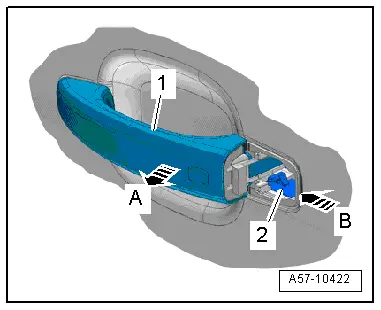

- Pull the exterior door handle -1- outward -arrow A- and hold in the "open" position.

- Press the lock cylinder/housing retaining bracket -2- inward -arrow B-. The exterior door handle is secured in the "opened" position.

Audi Q3. A57-10422

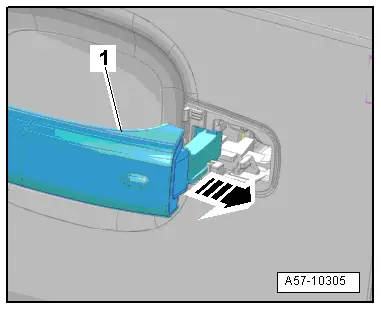

- Pull the exterior door handle -1- in the direction of the -arrow-. This disengages the handle from the operating lever in the mounting bracket.

Audi Q3. A57-10305

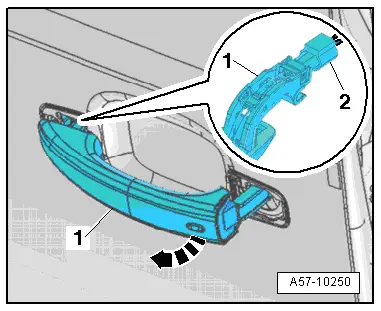

- Tilt the exterior door handle -1- outward -arrow- and remove it from the mount on the mounting bracket.

- If the vehicle has comfort key, disconnect the connector -2- on the exterior door handle.

Audi Q3. A57-10250

Installing

Install in reverse order of removal. Note the following:

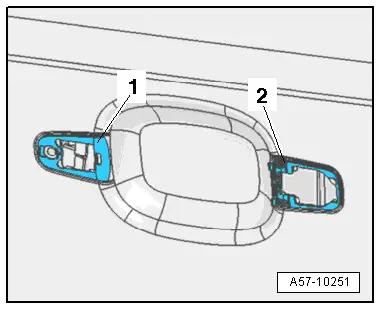

- Replace the exterior door handle washers -1- and -2- if damaged or brittle.

Audi Q3. A57-10251

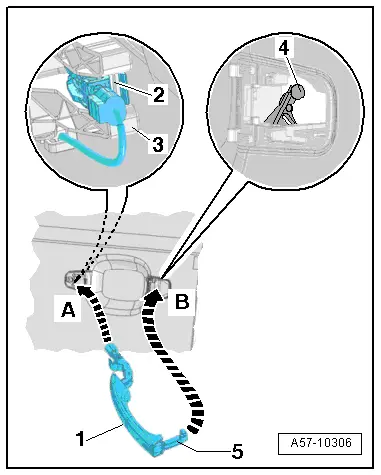

- Insert the exterior door handle -1--arrow A-. It must engage in the mount -2- on the mounting bracket -3-.

- Tilt the exterior door handle in the direction of -arrow B- and slide the "coupling plate"-5- into the mounting bracket in front of the operating lever -4-.

- Install the lock cylinder/housing. Refer to → Chapter "Lock Cylinder, Removing and Installing".

Audi Q3. A57-10306

Door Handle Trim, Removing and Installing

Removing

- Remove the outside door handle. Refer to → Chapter "Door Handle, Removing and Installing".

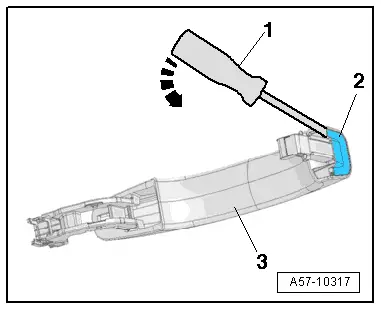

- Pry the exterior door handle trim -2- out using an awl -1- at the location shown in the illustration -arrow-.

- Remove the trim from the exterior door handle -3-.

Installing

Install in reverse order of removal. Note the following:

- Slide the exterior door handle trim in until it engages audibly.

- Install the exterior door handle. Refer to → Chapter "Door Handle, Removing and Installing".

Audi Q3. A57-10317
