Audi Q3: Antenna Amplifier, Removing and Installing

Audi Q3 (8U) 2011-2018 Service Manual / Electrical System / Communication / Antenna Systems / Antenna Amplifier, Removing and Installing

Antenna Amplifier -R24-, Removing and Installing

The Antenna Amplifier -R24- is located on the upper left of the rear lid.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the upper rear lid trim panel. Refer to → Body Interior; Rep. Gr.70; Luggage Compartment Trim Panel; Rear Lid Upper Trim Panel, Removing and Installing.

- Release and disconnect the connectors -1 and 4- on the Antenna Amplifier -R24--3-.

- Remove the bolt -2- and remove the Antenna Amplifier -R24--3- from the rear lid.

Installing

- Install in reverse order of removal.

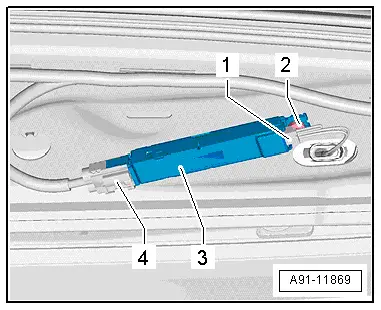

Audi Q3. A91-11869

Antenna Amplifier 2 -R111-, Removing and Installing

The Antenna Amplifier 2 -R111- is located on the bottom right of the rear lid.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the lower rear lid trim panel. Refer to → Body Interior; Rep. Gr.70; Luggage Compartment Trim Panel; Rear Lid Lower Trim Panel, Removing and Installing.

- Release and disconnect the connectors -3 and 4- on the Antenna Amplifier 2 -R111--2-.

- Remove the bolt -1- and remove the Antenna Amplifier 2 -R111--2- from the rear lid.

Installing

- Install in reverse order of removal.

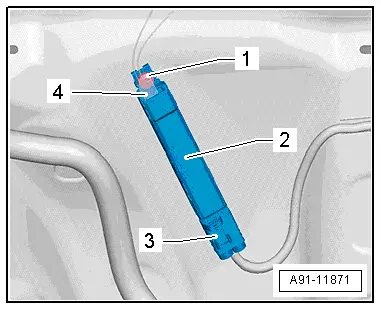

Audi Q3. A91-11871

Antenna Amplifier 3 -R112-, Removing and Installing

The Antenna Amplifier 3 -R112- is located on the bottom left of the rear lid.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the lower rear lid trim panel. Refer to → Body Interior; Rep. Gr.70; Luggage Compartment Trim Panel; Rear Lid Lower Trim Panel, Removing and Installing.

- Release and disconnect the connectors -3 and 4- on the Antenna Amplifier 3 -R112--2-.

- Remove the bolt -1- and remove the Antenna Amplifier 3 -R112--2- from the rear lid.

Installing

- Install in reverse order of removal.

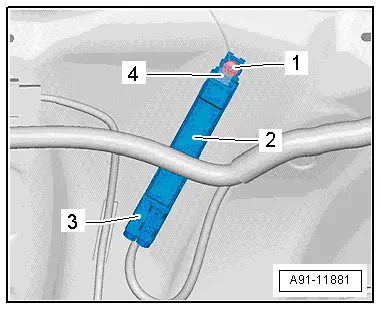

Audi Q3. A91-11881

Antenna Amplifier 4 -R113-, Removing and Installing

Antenna Amplifier 4 -R113- is located at the top right of the rear lid.

Removing

- Turn off the ignition and all electrical equipment and remove the ignition key.

- Remove the upper rear lid trim panel. Refer to → Body Interior; Rep. Gr.70; Luggage Compartment Trim Panel; Rear Lid Upper Trim Panel, Removing and Installing.

- Release and disconnect the connectors -2 and 3- from the Antenna Amplifier 4 -R113--4-.

- Remove the bolt -1- and remove the Antenna Amplifier 4 -R113--4- from the rear lid.

Installing

- Install in reverse order of removal.

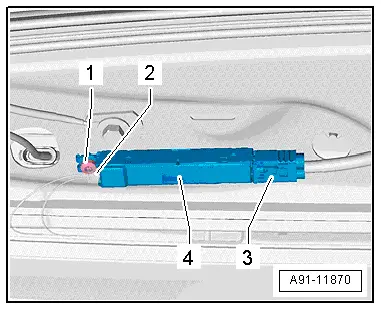

Audi Q3. A91-11870
