Audi Q3: Adjusting the display

Adjusting the display

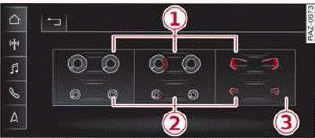

Fig. 6 Center display: adjusting the display

Switching the view

Applies to: Audi virtual cockpit

  • Press the VIEW button to switch between the default view 1 and the enhanced view 2.

Adjusting the layout

Applies to: Audi virtual cockpit

Depending on the vehicle equipment, various layouts may be available.

  • Applies to: MMI: Select on the home screen: SETTINGS > Display & brightness > Audi virtual cockpit.
  • To adjust the desired layout, press 3.

Adjusting the additional display

Applies to: Audi virtual cockpit

Depending on the vehicle equipment, the additional displays that can be selected may vary.

  • Applies to: MMI: Select on the home screen: SETTINGS > Display & brightness > Audi al cockpit > Configure.
  • Select the desired additional display.

Reducing the display

Depending on the vehicle equipment, you can hide the central area in the instrument cluster.

  • Select on the instrument cluster: vehicle functions tab > button > Reduced display, or
  • Press the VIEW button on the multifunction steering wheel.

Coolant temperature display

The coolant temperature display 1 only functions when the ignition is switched on.

To reduce the risk of engine damage, please observe the following notes about the temperature ranges.

Cold range

If only the LEDs at the bottom of the gauge turn on, the engine has not reached operating temperature yet. Avoid high engine speeds, full acceleration, and heavy engine loads.

Normal range

The engine has reached its operating temperature once the LEDs up to the center of the gauge turn on. If the indicator light in the instrument cluster display turns on, the coolant temperature is too high.

Note

  • Auxiliary headlights and other accessories in front of the air intake impair the cooling effect of the coolant. This increases the risk of the engine overheating during high outside temperatures and heavy engine load.
  • The front spoiler also helps to distribute cooling air correctly while driving. If the spoiler is damaged, the cooling effect will be impaired and the risk of the engine overheating will increase. See an authorized Audi dealer or authorized Audi Service Facility for assistance.
