Introduction

Applies to: vehicles with rearview camera/peripheral cameras

Parking and maneuvering

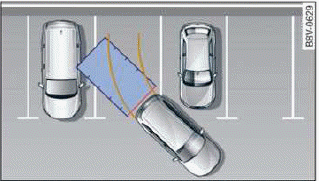

Fig. 113 Orientation line display when parking

Depending on the vehicle equipment, a rearview camera or multiple peripheral cameras may be available.

The rearview camera helps you to park or maneuver using the orientation lines.

The peripheral cameras expand the vehicle overview to include various views around the vehicle that can be selected

WARNING

Observe the safety precautions and note the limits of the assist systems, sensors, and cameras.

Activating and deactivating

Applies to: vehicles with rearview camera/peripheral cameras

Parking and maneuvering

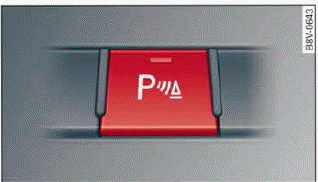

Fig. 114 Center console: parking aid button

Activating and deactivating

  • Press the button in the center console.

    When activated, a brief tone will sound and the LED in the button will turn on, or

  • Press on in the center display if the visual distance indicator fig. 112 is shown.

The system can be activated at low speeds, such when maneuvering.

Automatic activation

The system activates automatically when reverse gear is engaged while the engine is running. A brief tone will sound

Automatic deactivation

The system will deactivate automatically once the vehicle exceeds a certain speed while driving forward.

WARNING

Observe the safety precautions and note the limits of the assist systems, sensors, and cameras.

Warnings

Applies to: vehicles with rearview camera/peripheral cameras

Parking and maneuvering

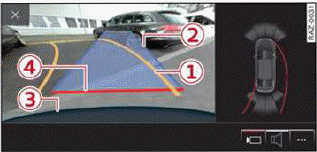

Fig. 115 Center display: aiming at a parking spot

Parking and maneuvering

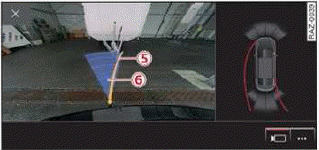

Fig. 116 Center display: trailer view

When parking with the rearview camera or peripheral camera, the parking aid audio and visual warnings will also assist you.

Visual orientation lines

  1. The orange orientation lines show the vehicle's direction of travel. Turn the steering wheel until the orange orientation lines align with the parking space.
  2. You can use the horizontal blue markings to help you estimate the distance to an obstacle.
    Each marking represents approximately 3 feet (1 meter). The blue surface is a static display and represents an extension of the vehicle perimeter to the rear.
  3. You can recognize the rear bumper in the lower display.
  4. You should stop driving in reverse when the red orientation line touches the edge of an object, at the latest.

Trailer view

Applies to: vehicles with trailer view

Requirement: the rearview camera or peripheral cameras are activated.

  • Applies to: vehicles with peripheral cameras: Switch to the Rear view fig. 117.
  • Select > Trailer in the center display when the parking aid is active.

With the trailer view fig. 176, it will be easier for you to position your vehicle in front of a trailer.

The orange orientation line 5 fig. 116 indicates the expected path toward the trailer hitch.

Use the blue markings 6 to help you estimate the distance to the trailer hitch. Each marking represents approximately 1 foot (0.30 meters).

The width of the blue surface represents the maximum steering wheel angle.

Symbols

Applies to: vehicles with peripheral cameras

If is displayed and the display area represented by that symbol is not available, then the camera on the that side is not available. The power exterior mirrors may have been folded in or a door or the luggage compartment lid may have been opened.

If is displayed, there is a system malfunction and the display area represented by that symbol is not available. The camera is not working in this area.

If one of the symbols continues to be displayed, drive immediately to an authorized Audi dealer or authorized Audi Service Facility to have the malfunction repaired.

WARNING

  • Observe the safety precautions and note the limits of the assist systems, sensors, and cameras.
  • Sensors and cameras have spots in which the surrounding area cannot be detected.

    Objects, animals, and people may only be detected with limitations may not be detected at all. Always monitor the traffic and the vehicle's surroundings directly and do not become distracted.

Note

  • The orange orientation lines 1 show the direction the rear of the vehicle will be traveling, based on the steering wheel angle. The front of the vehicle swings out more than the rear of the vehicle. Maintain plenty of distance so that an exterior mirror or a corner of the vehicle does not collide with any obstacles.
  • Keep enough distance from the curb to avoid damage to the rims.
  • Only use the images provided by the camera on the rear of the vehicle when the luggage compartment lid is completely closed. Make sure any objects you may have mounted on the luggage compartment lid do not block the rearview camera.

Tips

There is no distance warning for the rear and the sides when trailer towing mode is detected.

The front sensors remain activated. The visual display switches to trailer mode. There is no guarantee the functions will be deactivated when using a retrofitted trailer hitch.
