Audi Q3: Overview - Headlamp

Overview - Headlamp, Headlamp Mount

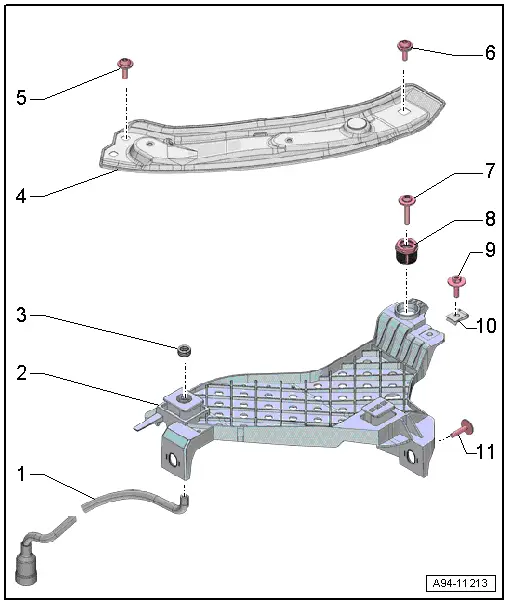

Audi Q3. Overview - Headlamp, Headlamp Mount

1 - Ventilation Hose

  • For the headlamp housing

2 - Lover Mount

  • For the headlamp housing
  • Removing and installing. Refer to → Chapter "Lower Headlamp Housing Mount, Removing and Installing".

3 - Seal

4 - Upper Mount

  • For the headlamp housing
  • Removing and Installing. Refer to → Body Exterior; Rep. Gr.50; Overview - Lock Carrier.

5 - Bolt

  • Quantity: 2
  • Tightening specification. Refer to → Body Exterior; Rep. Gr.50; Overview - Lock Carrier.

6 - Bolt

  • Tightening specification. Refer to → Body Exterior; Rep. Gr.50; Overview - Lock Carrier.

7 - Bolt

  • 4.5 Nm

8 - Adjusting Nut

  • For the headlamp housing height adjustment

9 - Bolt

  • 4.5 Nm

10 - Spring Nut

11 - Bolt

  • 4.5 Nm
  • Quantity: 2

Overview - Headlamp, Halogen Headlamps

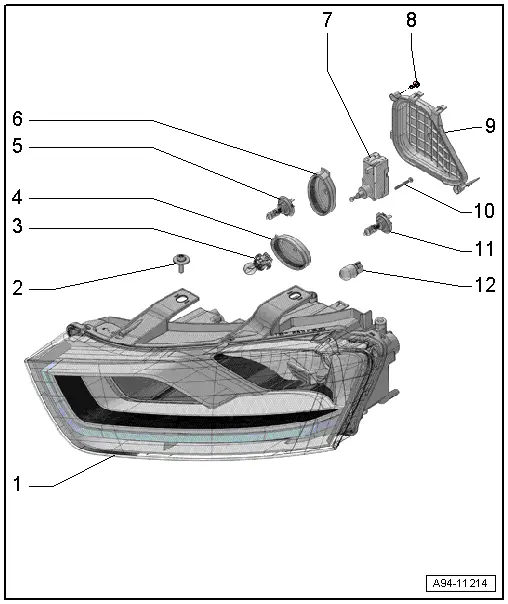

Audi Q3. Overview - Headlamp, Halogen Headlamps

1 - Headlamp Housing

  • Removing and installing. Refer to → Chapter "Headlamp, Removing and Installing, Halogen Headlamps".

2 - Bolt

  • 4.5 Nm
  • Quantity: 2

3 - Front Turn Signal Bulb

  • Left Front Turn Signal Bulb -M5-
  • Right Front Turn Signal Bulb -M7-
  • 12 V, 24 W - yellow
  • Bulb, replacing. Refer to → Chapter "Left/Right Front Turn Signal Bulb -M5-/-M7-, Removing and Installing, Halogen Headlamps".

4 - Housing Cover

5 - High Beam Headlamp Bulb

  • Left High Beam Headlamp Bulb -M30-
  • Right High Beam Headlamp Bulb -M32-
  • 12 V, 55 W (H7)
  • Bulb, replacing. Refer to → Chapter "Left/Right High Beam Headlamp Bulb -M30-/-M32-, Removing and Installing".

6 - Housing Cover

7 - Headlamp Beam Adjustment Motor

  • Left Headlamp Beam Adjustment Motor -V48-
  • Right Headlamp Beam Adjustment Motor -V49-
  • Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing, Halogen Headlamps".

8 - Bolt

  • 2 Nm
  • Quantity: 2

9 - Housing Cover

10 - Bolt

  • 1.4 Nm
  • Quantity: 2

11 - Low Beam Headlamp Bulb

  • Left Low Beam Headlamp Bulb -M29-
  • Right Low Beam Headlamp Bulb -M31-
  • 12 V, 55 W (H7)
  • Bulb, replacing. Refer to → Chapter "Low Beam Headlamp Bulb, Removing and Installing".

12 - Position lamp bulb/daytime running lamp

  • Left Position Lamp Bulb -M1-
  • Right Position Lamp Bulb -M3-
  • Left Daytime Running Lamp Bulb -L174-
  • Right Daytime Running Lamp Bulb -L175-
  • 12 V, 21 W (W21W)
  • Bulb, replacing. Refer to → Chapter "Left/Right Position Lamp Bulb -M1-/-M3-, Removing and Installing".

Overview - Headlamp, HID Headlamps, through MY 2014

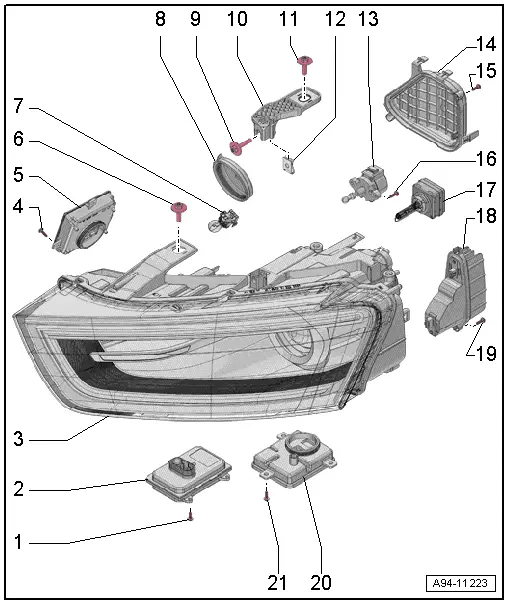

Audi Q3. Overview - Headlamp, HID Headlamps, through MY 2014

1 - Bolt

  • 1.5 Nm
  • Quantity: 3

2 - Power Output Stage

  • Only for vehicles with cornering lamps
  • Left Headlamp Power Output Stage -J667-
  • Right Headlamp Power Output Stage -J668-
  • Removing and installing. Refer to → Chapter "Left/Right Headlamp Power Output Stage -J667-/-J668-, Removing and Installing, through MY 2014".

3 - Headlamp Housing

  • With Left Low Beam Headlamp Reflector Motor -V294-
  • With Right Low Beam Headlamp Reflector Motor -V295-
  • The low beam headlamp reflector motor is integrated in the headlamp housing and cannot be replaced separately if it is faulty.
  • Vehicle equipment versions with cornering lamps
  • With Left Adaptive Cornering Lamp Motor -V318-
  • With Right Adaptive Cornering Lamp Motor -V319-
  • The adaptive cornering lamp motor is integrated in the headlamp housing and cannot be replaced separately if it is faulty.
  • Removing and installing. Refer to → Chapter "Headlamp, Removing and Installing, HID and LED Headlamps".

4 - Bolt

  • 1.5 Nm
  • Quantity: 3

5 - Daytime Running Lamp and Position Lamp Control Module

  • Left Daytime Running Lamp and Position Lamp Control Module -J860-
  • Right Daytime Running Lamp and Position Lamp Control Module -J861-
  • Removing and installing. Refer to → Chapter "Left/Right Daytime Running Lamp and Position Lamp Control Module -J860-/-J861-, Removing and Installing, through MY 2014".

6 - Bolt

  • 4.5 Nm

7 - Turn Signal Bulb

  • Left Front Turn Signal Bulb -M5-
  • Right Front Turn Signal Bulb -M7-
  • 12 V, 21 W (H21W)
  • Bulb, replacing. Refer to → Chapter "Left/Right Front Turn Signal Bulb -M5-/-M7-, Removing and Installing, HID Headlamps, through MY 2014".

8 - Housing Cover

9 - Bolt

  • 4.5 Nm

10 - Headlamp Housing Bracket

11 - Bolt

  • 4.5 Nm

12 - Spring Nut

13 - Headlamp Beam Adjustment Motor

  • Left Headlamp Beam Adjustment Motor -V48-
  • Right Headlamp Beam Adjustment Motor -V49-
  • Removing and installing. Refer to → Chapter "Left/Right Headlamp Beam Adjustment Motor -V48-/-V49-, Removing and Installing".

14 - Housing Cover

15 - Bolt

  • 2 Nm
  • Quantity: 2

16 - Bolt

  • 1.4 Nm
  • Quantity: 2

17 - Hid Headlamp Bulb

  • With integrated ignition coil
  • Left HID Headlamp Bulb -L13-
  • Right HID Headlamp Bulb -L14-
  • 42 V, 35 W (D3S)
  • Bulb, replacing. Refer to → Chapter "Left/Right HID Headlamp Bulb -L13-/-L14-, Removing and Installing, through MY 2014".

18 - Daytime Running Lamp and Position Lamp LED Module

  • Left Daytime Running Lamp and Position Lamp LED Module -L176-
  • Right Daytime Running Lamp and Position Lamp LED Module -L177-
  • Removing and installing. Refer to → Chapter "Left/Right Daytime Running Lamp and Position Lamp LED Module -L176-/-L177-, Removing and Installing, through MY 2014".

19 - Bolt

  • 0.9 Nm
  • Quantity: 2

20 - HID Headlamp Control Module

  • Left HID Headlamp Control Module -J343-
  • Right HID Headlamp Control Module -J344-
  • Removing and installing. Refer to → Chapter "Left/Right HID Headlamp Control Module -J343-/-J344-, Removing and Installing, through MY 2014".

21 - Bolt

  • 1.5 Nm
  • Quantity: 3

Overview - Headlamp, HID Headlamps, from MY 2015

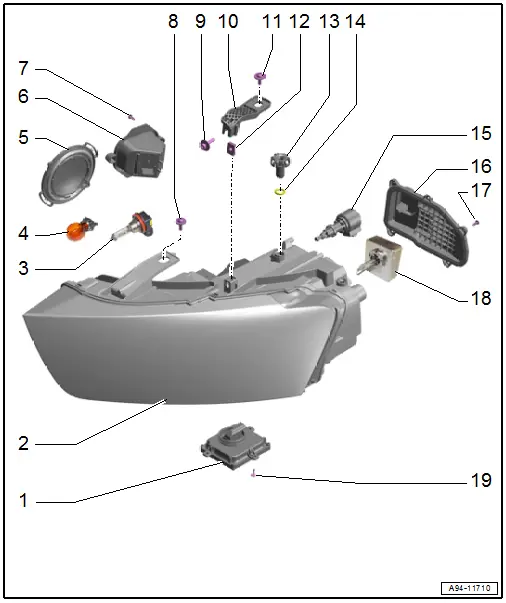

Audi Q3. Overview - Headlamp, HID Headlamps, from MY 2015

1 - Daytime Running Lamp and Position Lamp Control Module

  • Left Daytime Running Lamp and Position Lamp Control Module -J860-
  • Right Daytime Running Lamp and Position Lamp Control Module -J861-
  • Removing and installing. Refer to → Chapter.

2 - Headlamp Housing

  • Removing and installing. Refer to → Chapter "Headlamp, Removing and Installing, HID and LED Headlamps".

3 - All Weather Lamp Bulb

  • Left All Weather Lamp Bulb -M109-
  • Right All Weather Lamp Bulb -M110-
  • Removing and installing. Refer to → Chapter.

4 - Turn Signal Bulb

  • Left Front Turn Signal Bulb -M5-
  • Right Front Turn Signal Bulb -M7-
  • 12 V, 21 W (H21W)
  • Bulb, Replacing. Refer to → Chapter "Left/Right Front Turn Signal Bulb -M5-/-M7-, Removing and Installing, HID Headlamps, from MY 2015".

5 - Housing Cover

6 - Daytime Running Lamp and Position Lamp LED Module

  • Left Daytime Running Lamp and Position Lamp LED Module -L176-
  • Right Daytime Running Lamp and Position Lamp LED Module -L177-
  • Removing and installing. Refer to → Chapter "Left/Right Daytime Running Lamp and Position Lamp LED Module -L176-/-L177-, Removing and Installing, HID Headlamps, from MY 2015".

7 - Bolt

  • 1.5 Nm
  • Quantity: 2

8 - Bolt

  • 4.5 Nm

9 - Bolt

  • 4.5 Nm

10 - Headlamp Housing Bracket

11 - Bolt

  • 4.5 Nm

12 - Spring Nut

13 - Height Adjusting Screw

14 - Gasket

  • Replace if damaged.
  • shared component with height adjusting screw Cannot be replaced separately. Refer to Parts Catalog.

15 - Headlamp Beam Adjustment Motor

  • Left Headlamp Beam Adjustment Motor -V48-
  • Right Headlamp Beam Adjustment Motor -V49-
  • Removing and installing. Refer to → Chapter.

16 - Housing Cover

17 - Screw

  • 2 Nm
  • Quantity: 5

18 - HID Headlamp Bulb

  • Left HID Headlamp Bulb -L13- is integrated in the Left HID Headlamp Control Module -J343-
  • Right HID Headlamp Bulb -L14- is integrated in the Right HID Headlamp Control Module -J344-
  • Removing and installing. Refer to → Chapter "Left/Right HID Headlamp Bulb -L13-/-L14- with Left/Right HID Headlamp Control Module -J343-/-J344-, Removing and Installing, from MY 2015".

19 - Bolt

  • 1.5 Nm
  • Quantity: 3

Overview - Headlamp, LED Headlamps

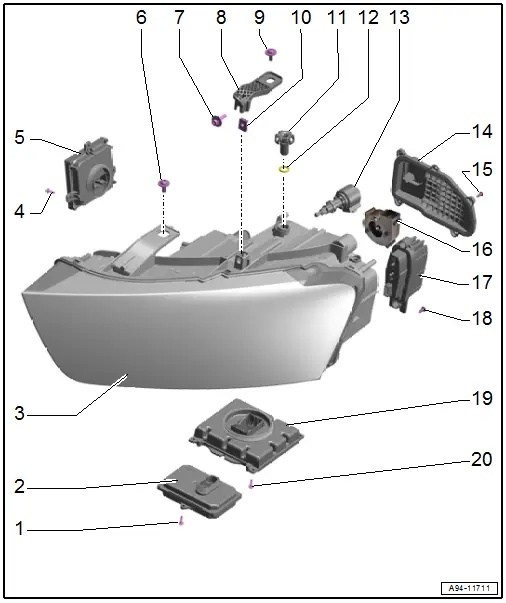

Audi Q3. Overview - Headlamp, LED Headlamps

1 - Screw

  • 1.5 Nm
  • Quantity: 3

2 - Headlamp Power Output Stages

  • Left Headlamp Power Output Stage -J667-
  • Right Headlamp Power Output Stage -J668-
  • Removing and installing. Refer to → Chapter "Left/Right Headlamp Power Output Stage -J667-/-J668-, Removing and Installing, from MY 2015".

3 - Headlamp Housing

  • Removing and installing. Refer to → Chapter "Headlamp, Removing and Installing, HID and LED Headlamps".

4 - Bolt

  • 1.5 Nm
  • Quantity: 3

5 - Daytime Running Lamp and Position Lamp Control Module

  • Left Daytime Running Lamp and Position Lamp Control Module -J860-
  • Right Daytime Running Lamp and Position Lamp Control Module -J861-
  • Removing and installing. Refer to → Chapter "Left/Right Daytime Running Lamp and Position Lamp Control Module -J860-/-J861-, Removing and Installing, from MY 2015".

6 - Bolt

  • 4.5 Nm

7 - Bolt

  • 4.5 Nm

8 - Headlamp Housing Bracket

9 - Bolt

  • 4.5 Nm

10 - Spring Nut

11 - Height Adjusting Screw

12 - Gasket

  • Replace if damaged.
  • Shared component with height adjusting screw Cannot be replaced separately. Refer to Parts Catalog.

13 - Headlamp Beam Adjustment Motor

  • Left Headlamp Beam Adjustment Motor -V48-
  • Right Headlamp Beam Adjustment Motor -V49-
  • Removing and installing. Refer to → Chapter.

14 - Housing Cover

15 - Bolt

  • 1.5 Nm
  • Quantity: 5

16 - Headlamp Fan

  • Left Headlamp Fan -V407-, Right Headlamp Fan -V408-
  • Removing and installing. Refer to → Chapter.

17 - Daytime Running Lamp and Position Lamp LED Module

  • Left Daytime Running Lamp and Position Lamp LED Module -L176-
  • Right Daytime Running Lamp and Position Lamp LED Module -L177-
  • Removing and installing. Refer to → Chapter "Left/Right Daytime Running Lamp and Position Lamp LED Module -L176-/-L177-, Removing and Installing, LED Headlamps, from MY 2015".

18 - Bolt

  • 0.9 Nm
  • Quantity: 2

19 - LED Headlamp Power Output Stage 1

  • For low beam
  • Left LED Headlamp Power Output Module 1 -A31-, Right LED Headlamp Power Output Module 1 -A27-
  • Removing and installing. Refer to → Chapter "Right/Left LED Headlamp Power Output Module 1 -A27-/-A31-, Removing and Installing".

20 - Bolt

  • 1.5 Nm
  • Quantity: 4

Overview - Headlamp, Headlamp Housing Repair Set

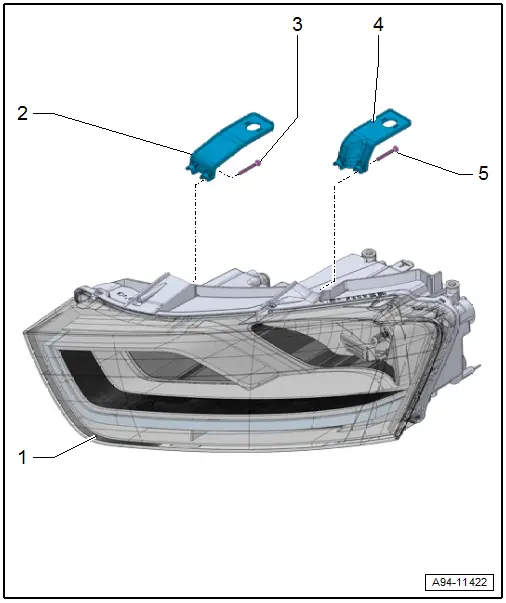

Audi Q3. Overview - Headlamp, Headlamp Housing Repair Set

1 - Headlamp

2 - Inner Tab

  • Replacing. Refer to → Chapter "Headlamp Housing Repair Set, Installing".

3 - Bolt

  • 6 Nm
  • Quantity: 2

4 - Outer Tab

  • Only halogen headlamps
  • Replacing. Refer to → Chapter "Headlamp Housing Repair Set, Installing".

5 - Bolt

  • 6 Nm
  • Quantity: 2
