Audi Q3: Overview - Bench Seat/Single Seat

Audi Q3 (8U) 2011-2018 Service Manual / Body / Body Interior / Seat Frames / Overview - Bench Seat/Single Seat

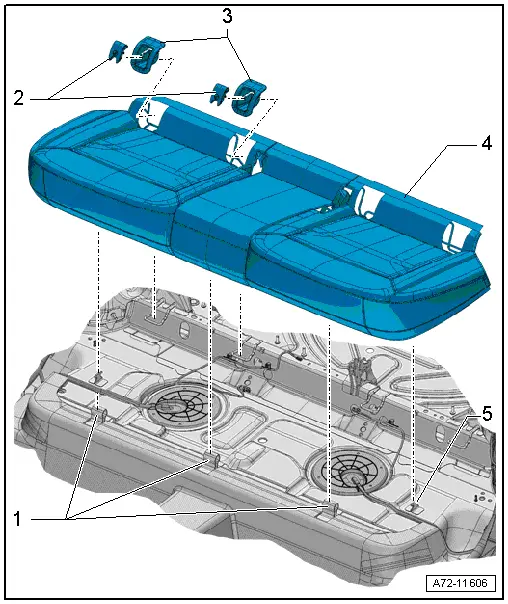

Audi Q3. Overview - Bench Seat/Single Seat

1 - Front Mount

  • For securing the rear bench seat
  • Welded to the floor panel.

2 - Cover

  • For child seat anchor
  • Quantity: 4
  • Removing and installing. Refer to → Chapter "Child Seat Anchor Guide, Removing and Installing, Rear".
  • Must be secure in the anchor

3 - Guide

  • For child seat anchor
  • Quantity: 4
  • Removing and installing. Refer to → Chapter "Child Seat Anchor Guide, Removing and Installing, Rear".
  • Must be secure in the anchor

4 - Rear Bench Seat

  • Removing and installing. Refer to → Chapter "Bench Seat/Single Seat, Removing and Installing".
  • The seat frame must correctly in the mount.

5 - Side Mount

  • Quantity: 2
  • For securing the rear bench seat
  • Welded to the floor panel.

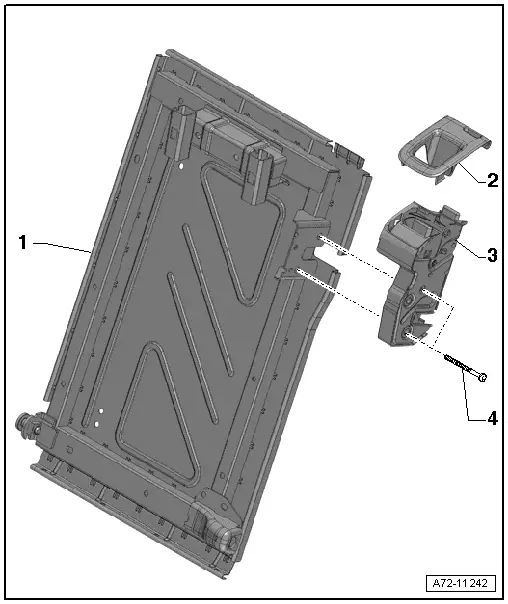

Overview - Locking Mechanism

  Note

The overview shows the locking mechanism on the left 1/3 rear seat backrest. The locking mechanism on the right 2/3 rear seat backrest is identical.

1 - Rear Seat Backrest Frame

2 - Trim

  • For locking
  • Removing and installing. Refer to → Chapter "Locking Mechanism Trim, Removing and Installing".
  • Press on until it engages audibly

3 - Locking Mechanism

  • For the rear seat backrest
  • Removing and installing. Refer to → Chapter "Rear Seat Backrest Locking Mechanism, Removing and Installing".

4 - Bolt

  • 25 Nm
  • Quantity: 2

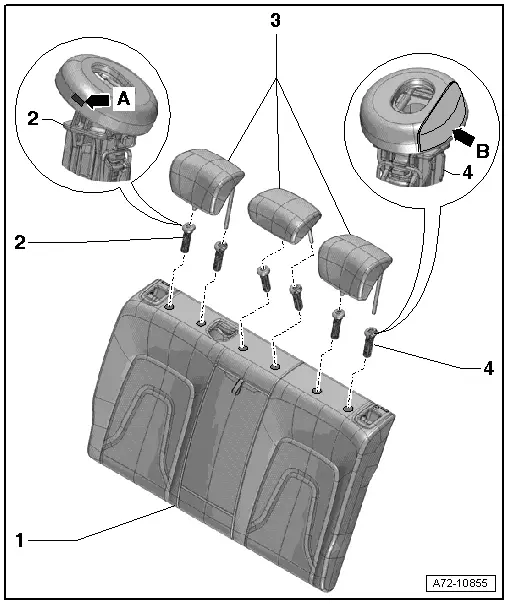

Overview - Headrest and Headrest Guide

1 - Rear Seat Backrest

2 - Headrest Guide

  • With securing spring -arrow A-
  • Always installed on the rear seat backrest on the right side
  • Removing and installing. Refer to → Chapter "Headrest Guide, Removing and Installing".
  • The guide tab must engage in the mount cut-out on the headrest guide
  • Push in until the retaining tabs correctly latch to the rear seat backrest frame.

3 - Head Restraint

  • Removing and installing. Refer to → Chapter "Headrest, Removing and Installing".
  • Must be locked in the headrest guides

4 - Headrest Guide

  • With headrest height adjustment button -arrow B-
  • Always installed on the rear seat backrest on the left side
  • Removing and installing. Refer to → Chapter "Headrest Guide, Removing and Installing".
  • The guide tab must engage in the mount cut-out on the headrest guide
  • Push in until the retaining tabs correctly latch to the rear seat backrest frame.

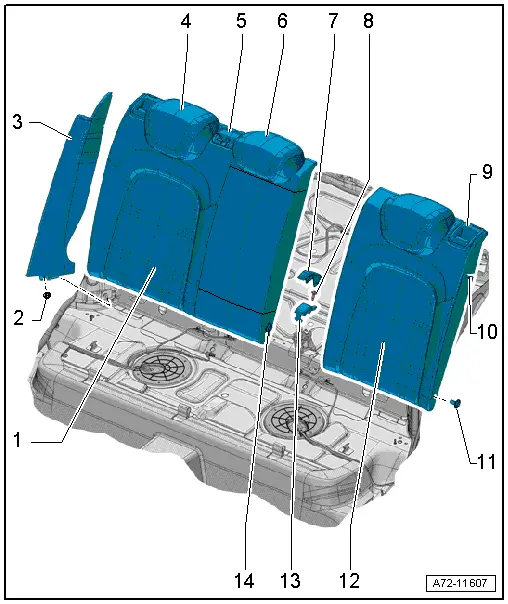

Overview - Rear Seat Backrest

Audi Q3. Overview - Rear Seat Backrest

1 - Right 2/3 Rear Seat Backrest

  • Removing and installing. Refer to → Chapter "Rear Seat Backrest, Removing and Installing".

2 - Nut

  • 9 Nm
  • Quantity: 2

3 - Side Padding with Side Airbag

  • Equipment levels
  • Driver side: with Driver Side Rear Thorax Airbag Igniter -N201-
  • Passenger side: with Passenger Side Rear Thorax Airbag Igniter -N202-

  WARNING

Follow all safety precautions when working with pyrotechnic components. Refer to → Chapter "Pyrotechnic Components Safety Precautions".

  • Quantity: 2
  • Removing and installing. Refer to → Chapter "Rear Side Padding With Side Airbag, Removing and Installing".
  • Engage in the seat belt guide at the top first

4 - Outer Headrests

  • Quantity: 2
  • Removing and installing. Refer to → Chapter "Headrest, Removing and Installing".

5 - Rear Center Belt Guide

  • Replace the entire belt guide if damaged.
  • Removing and installing. Refer to → Chapter "Rear Seat Belt Guide in Center Seating Position, Removing and Installing".

6 - Headrest in the Center

  • Removing and installing. Refer to → Chapter "Headrest, Removing and Installing".

7 - Cover

  • For the center bracket
  • Removing and installing. Refer to → Chapter "Rear Seat Backrest, Removing and Installing".
  • Press on until it engages audibly

8 - Bolt

  • 9 Nm

9 - Trim

  • For locking
  • Quantity: 2
  • Removing and installing. Refer to → Chapter "Locking Mechanism Trim, Removing and Installing".
  • Press on until it engages audibly

10 - Locking Mechanism

  • For the rear seat backrest
  • Quantity: 2
  • Removing and installing. Refer to → Chapter "Rear Seat Backrest Locking Mechanism, Removing and Installing".

11 - Outer Bearing Sleeve

  • Quantity: 2
  • Place in the rear seat backrest frame and push until stop.

12 - Left 1/3 Rear Seat Backrest

  • Removing and installing. Refer to → Chapter "Rear Seat Backrest, Removing and Installing".

13 - Securing Bracket

  • For the center bracket
  • Removing and installing. Refer to → Chapter "Rear Seat Backrest, Removing and Installing".

14 - Inner Mounting Pin

  • 13.5 Nm
  • For the rear seat backrest
  • Quantity: 2
  • Removing and installing. Refer to → Chapter "Rear Seat Backrest, Removing and Installing".

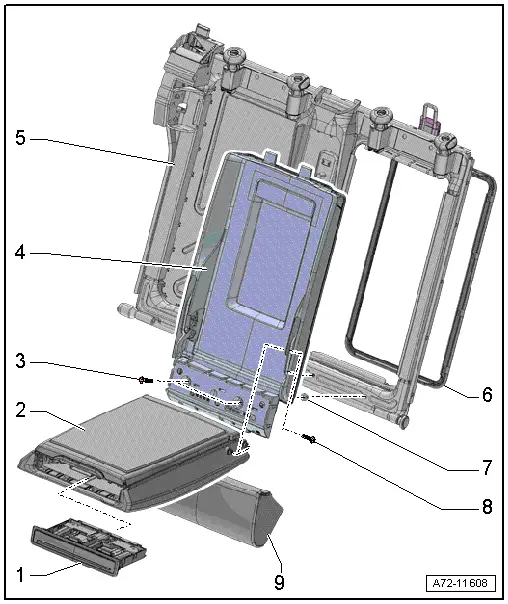

Overview - Center Armrest

Audi Q3. Overview - Center Armrest

1 - Cupholder

  • Removing and installing. Refer to → Chapter "Cupholder, Removing and Installing".
  • Install and press on it until it audibly latches

2 - Center Armrest

  • Removing and installing. Refer to → Chapter "Center Armrest, Removing and Installing".

3 - Bolt

  • 9 Nm
  • Quantity: 2
  • Secured with lock washer -item 7-.

4 - Door

  • For pass-through
  • Removing and installing. Refer to → Chapter "Pass-Through Cover, Removing and Installing".

5 - Right 2/3 Rear Seat Backrest

  • With pass-through
  • Equipment levels

6 - Cover Frame

  • For pass-through
  • Clipped into the rear seat backrest
  • Removing and installing. Refer to → Chapter "Pass-Through Cover Frame, Removing and Installing".
  • Press on until it engages audibly

7 - Lock Washer

  • For bolt -item 3-
  • Quantity: 2

8 - Bolt

  • 12 Nm
  • Quantity: 4
  • Self-locking
  • Replace after removing
  • Threaded holes for bolts must be cleaned, for example, with a thread tap

9 - Center Cushion

  • Removing and installing. Refer to → Chapter "Center Cushion, Removing and Installing".
  • Press on until it engages audibly
