Audi Q3: Map

Map function

Applies to: vehicles with navigation system

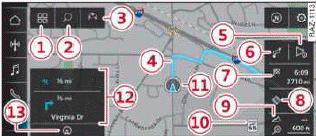

Fig. 131 Active route quidance

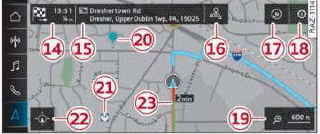

Fig. 132 Marked map object

Opening the map

  • Applies to: MMI: Press NAVIGATION on the home screen.
  • If necessary, press to display the map.

The following list gives an overview of the information displayed on the map. Press on any function (for example, alternative routes) to show additional options.

  1. Select destination
  2. Entering a destination
  3. Cancel route guidance
  4. Current route
  5. Request spoken prompt
  6. Alternative routes
  7. Display active destinations, stopovers, or route plan. The distance to the destination including the calculated arrival time is displayed
  8. Online traffic information
  9. Altitude
  10. Displays the maximum permitted speed: within city limits, on expressways, and on highways
  11. Current vehicle position
  12. Route information
  13. Name of the street on which you are driving
  14. Start route guidance for a marked destination
  15. Display details for the destination
  16. Intelligent search nearby
  17. Adjust the map orientation
  18. Settings
  19. Adjust the scale. Press the magnifying glass to switch automatic zoom on the map on or off. The symbol appears when this function is switched on
  20. Marked destination
  21. Map contents (points of interest, favorites).
    When there are multiple map contents in the immediate vicinity, the symbols are shown stacked on the map. To display a list of individual symbols, press fig. 132. Press on a POI in the list
  22. Center the map to the current vehicle position
  23. Traffic incidents and display of estimated losses of time on the route
  • Green: traffic is flowing freely.
  • Orange: stop-and-go traffic.
  • Red: traffic jam or traffic obstructions.

Additional possible symbols on the map

Home address

  Business address


  Previous destinations display

Traffic information

  • Colored warning symbols: traffic incidents ahead that are on your route.
  • Grayed out warning symbols: traffic incidents that are not on your route.
  • All traffic incidents will display in color when route guidance is inactive.
  • Warning symbols with arrow: traffic incident that you have been routed around, for example .

Map operation

Applies to: vehicles with navigation system

You can operate the map fig. 131 with the movements described in the following information.

Moving the map

  • Drag your finger across the map in the desired direction.

Moving the map quickly

  • Swipe your finger across the map in the desired direction and lift your finger off the map.

Zooming in on the map

  • Place two fingers on the map and pull your fingers apart, or
  • Double-tap on the map with one finger.

Zooming out on the map

  • Place two fingers on the map and pull your fingers together, or
  • Double-tap on the map with two fingers.

Rotating the map

  • Rotate the map using two fingers.

Tilting the map

  • Drag upward or downward with two fingers.


Certain gestures may not be available on all touch displays or in every menu.

Navigation view with route guidance started

Applies to: vehicles with navigation system and Audi virtual cockpit

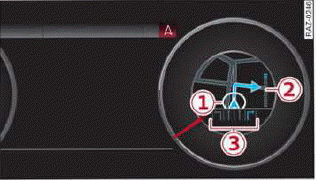

Fig. 133 Instrument cluster: default view: turning maneuver when route guidance has started

Requirement: route guidance must be on.

The following information will be displayed in the driver information system, if available:

  1. Current vehicle position
  2. A bar graph appears when there is an upcoming turn. The fewer the bars that are shown, the shorter the distance is until the turn. If there is no upcoming turn immediately ahead, the distance to the destination or stopover, the calculated arrival time, and a direction arrow for the upcoming maneuver will be displayed in the right speedometer. If there is no upcoming maneuver, the distance to the next maneuver will be displayed.
  3. Lane recommendation
