Audi Q3: Folding the outer backrests
Applies to: vehicles with folding backrests
.png)

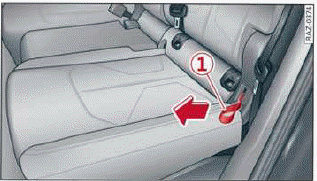

Fig.72 Rear bench seat: loop
The rear seat backrests can be folded forward either separately or together.
Observe the safety precautions.
- If necessary, slide the rear bench seat back.
- To fold the backrest forward, pull the strap 1 in the direction of the arrow. The backrest will swing forward.
- Fold the backrest forward until it locks into place.
- To fold the backrest back, pull the strap 1 in the direction of the arrow again.
- Fold the backrest backward until it locks into place.
Folding the center armrest
Applies to: vehicles with folding center armrest
.png)

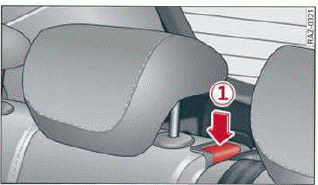

Fig.73 Center backrest: release button
Observe the safety precautions.
- To fold the center backrest forward, press the release button 1.
- After the transport, fold the center backrest up until it locks into place.
Tie-downs and cargo net 1)
.png)

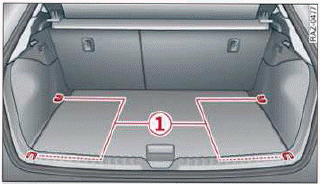

Fig. 74 Luggage compartment: location of the tie-downs
.png)

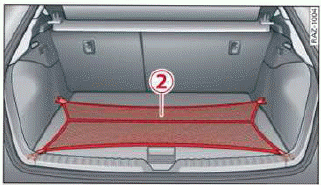

Fig. 75 Luggage compartment: luggage compartment net
stretched out
Observe the safety precautions.
Tie-downs
There are tie-downs 1 in the luggage compartment to secure pieces of luggage and objects.
- Use the tie-downs to secure the cargo.
Cargo net 1)
Applies to: vehicles with cargo net
Light objects can be secured in the luggage compartment using the cargo net 2.
- Unfold the bracket for the front tie-downs.
- Insert the hooks on the cargo net into the tie-downs.
1) In certain countries.
