Audi Q3: Additionally securing a child safety seat to the top tether anchor

Audi Q3 2018-2023 Owner's Manual / Starting and driving / Sitting correctly and safely / Additionally securing a child safety seat to the top tether anchor

Sitting correctly and safely

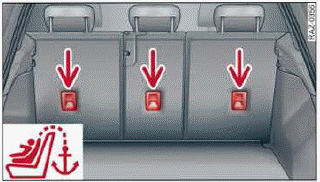

Fig. 66 Rear backrest: top tether anchors to secure a child safety seat with an upper belt

Sitting correctly and safely
Fig. 67 Rear backrest: securing the upper belt to the top tether anchor

Observe the safety precautions.

There is a top tether anchor behind every seat in the rear bench seat to additionally secure a child safety seat with an upper belt.

  • Move the head restraint behind the child safety seat upward.
  • Secure the child safety seat according to the child safety seat manufacturer instructions.
  • Guide the upper belt on the child safety seat under the head restraint or along both sides of it and toward the rear (depending on the child safety seat model).
  • Fasten the belt to the top tether anchor fig. 67. While doing this, make sure the belt is not twisted and is not running over any sharp edges.
  • Pull the belt tightly so that the child safety seat rests at the top of the seat backrest.
  • If necessary, move the head restraint behind the child safety seat downward.

WARNING

The top tether anchors in the vehicle are only designed for child safety seats equipped with an upper strap. To reduce the risk of serious or fatal injury, never secure other child restraint systems, belts, or objects to the anchors.
