Audi Q3: Panoramic glass roof
Operating the roof and roof sunshade
Applies to: vehicles with panoramic glass roof and roof sunshade
.png)

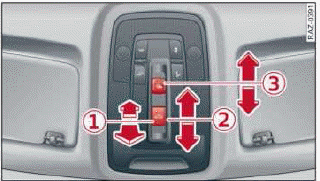

Fig. 36 Headliner: panoramic glass roof and sunshade
buttons
The control buttons are equipped with a twostage function.
When tilting or opening the roof, the roof sunshade will automatically open partially or completely.
Operating the roof sunshade
Applies to: Q3
The roof sunshade cannot be closed completely if the roof is open.
- Opening and closing the sunshade: push the
.png)
switch in the headliner 3 briefly toward the
rear or forward to the second level. - Partially opening the sunshade: press the
.png)
switch to the first level until the sunshade
reaches the desired position.
Operating the roof sunshade
Applies to: Q3 Sportback
The roof sunshade cannot be closed completely if the roof is open.
- Opening and closing the sunshade: push the
.png)
switch in the headliner 2
briefly toward
the rear or forward to the second level. - Partially opening the sunshade: press the
.png)
switch to the first level until the sunshade
reaches the desired position.
Operating the roof
- Tilting the roof: press the
switch in the
headliner briefly up to the second level 1.
- Closing the tilted roof: pull the
switch down
briefly to the second level.
- Applies when the sunshade is open: Opening
the roof: push the button
toward the rear
briefly to the second level 2.
- Closing the opened roof: push the
switch
forward briefly to the second level.
- Applies when the sunshade is open: Opening
partially: push, press, or pull the
switch to
the first level until the roof reaches the desired
position.
Quick opening
You can also open the roof and roof sunshade in one movement.
- Push the switch back briefly
to the second
level 2 twice in a row.
If necessary, you can interrupt the quick opening or closing process by pressing the button again.
Roof emergency closing
If an object is detected when closing, the roof will open again automatically. In this case, you can then close it with the power emergency closing function.
- Within five seconds after the sunroof opens automatically, pull the applicable button until the roof is closed.
WARNING
- Observe the safety precautions.
- To reduce the risk of injury, always pay attention when closing the roof. Always switch the ignition off and take the key with you when leaving the vehicle.
Note
Always close the roof when you leave the vehicle and when there is precipitation to reduce the risk of damage to the interior equipment, particularly the electronic equipment.
Tips
- After switching off the ignition, the roof and sunshades can still be operated for several minutes as long as neither of the front doors have been opened.
- It is not possible to open the roof when temperatures are too low.
