Audi Q3: Wheel Bolts

Audi Q3 (8U) 2011-2018 Service Manual / Chassis / Wheel and Tire General Information / Wheel Bolts

Wheel Bolt Types

  Note

Make sure the correct wheel bolts are installed. Refer to the Parts Catalog.

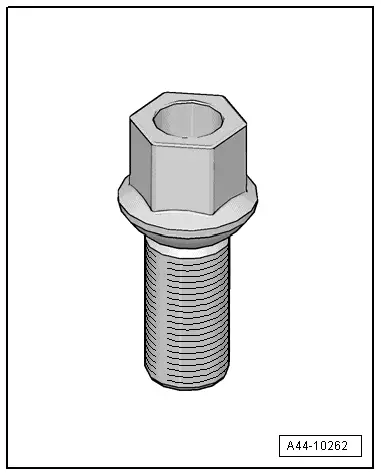

Standard, One-Piece Wheel Bolt

Audi Q3. A44-10262

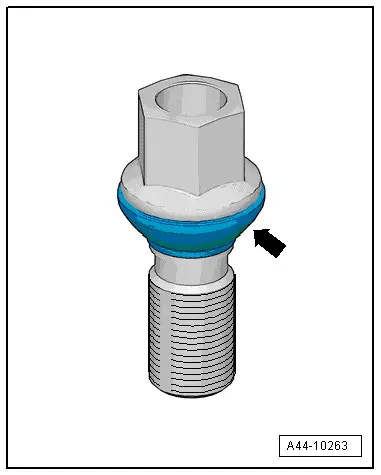

Two-piece wheel bolt, short turnable spherical calotte, primarily for S models.

Audi Q3. A44-10263

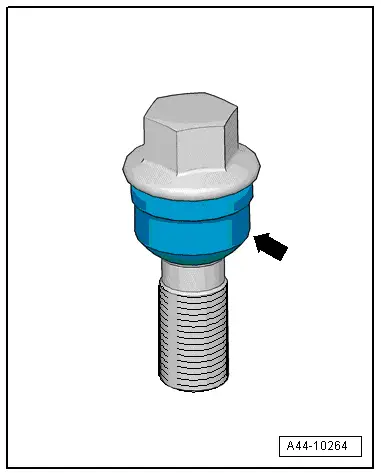

Two-piece wheel bolt, short turnable spherical calotte, primarily for S models.

Audi Q3. A44-10264

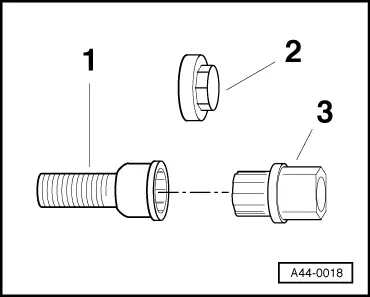

Anti-Theft Wheel Bolts

1 - Anti-theft wheel bolts

2 - Cap

3 - Wheel bolt adapter

Audi Q3. A44-0018

Master Sets for Anti-Theft Wheel Bolts

Special tools and workshop equipment required

  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Wheel Lock Set -T10101-
  • Wheel Lock Set -T10101A-
  • Wheel Lock Set -T40004-
  • Wheel Lock Set -T40073-
