Audi Q3: Special Tools

Audi Q3 (8U) 2011-2018 Service Manual / Chassis / Suspension, Wheels, Steering / Front Suspension / Special Tools

Special tools and workshop equipment required

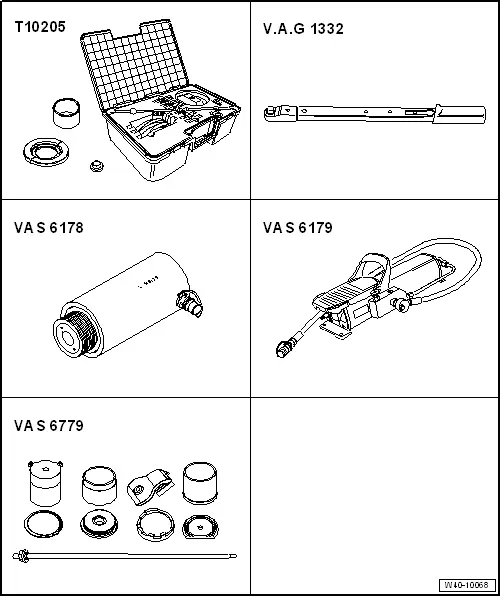

  • Bearing Installer - Wheel Hub/Bearing Kit -T10205-
  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Hydraulic Press -VAS6178-
  • Pneumatic/Hydraulic Foot Pump -VAS6179-
  • Hydraulic Press - Bushing Tool Kit -VAS6779-

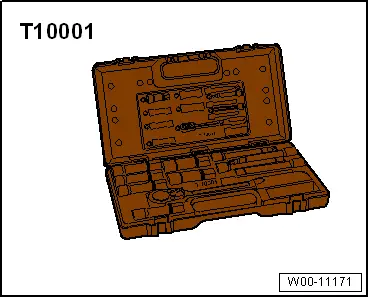

  • Shock Absorber Set -T10001-

Audi Q3. W00-11171

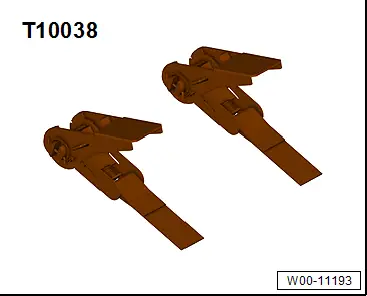

  • Tensioning Strap -T10038-
  • Tripod Joint Tool -T10065-

Audi Q3. W00-11193

  • Locating Pins -T10096-

Audi Q3. W00-11623

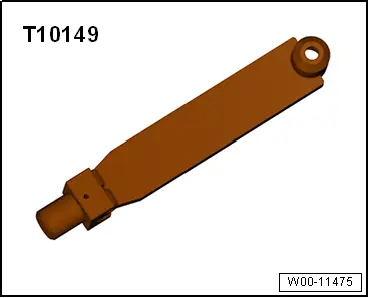

  • Engine/Gearbox Jack Adapter - Wheel Hub Support -T10149-

Audi Q3. W00-11475

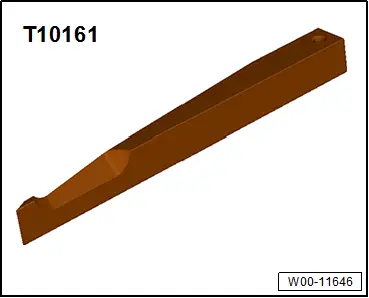

  • Drive Axle Wedge Tool -T10161-

Audi Q3. W00-11646

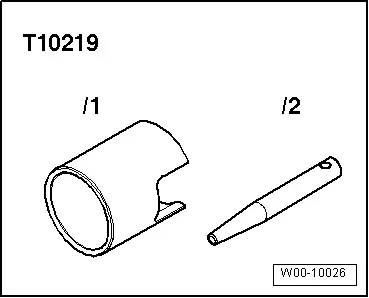

  • Wishbone Rubber Mount Assembly Tool -T10219-

Audi Q3. W00-10026

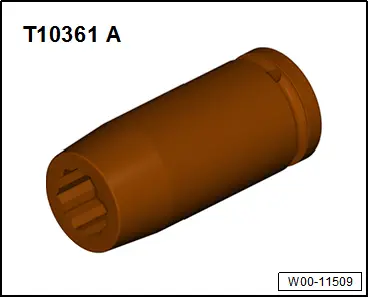

  • Socket AF 24 mm -T10361A-

Audi Q3. W00-11509

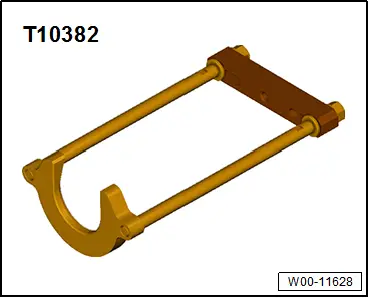

  • Puller - Driveshaft -T10382-
  • Hose Clip Pliers -VAG1275A-

Audi Q3. W00-11628

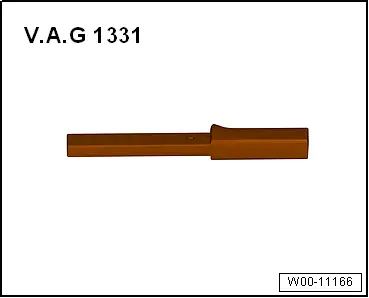

  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Torque Wrench 1331 Insert - Ring Wrench - 16mm -VAG1331/12-

Audi Q3. W00-11166

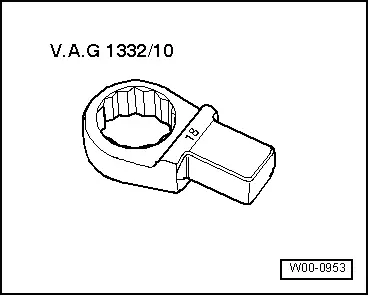

  • Torque Wrench 1332 Insert - Ring Wrench - 18mm -VAG1332/10-
  • Clamping Pliers -VAG1682A-

Audi Q3. W00-0953

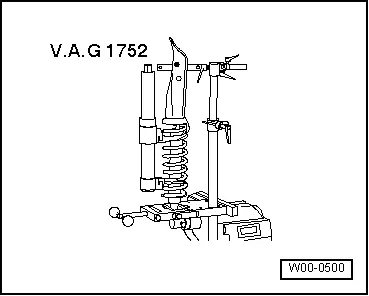

  • Spring Compressor Kit - Spring Tensioner -VAG1752/1-

Audi Q3. W00-0500

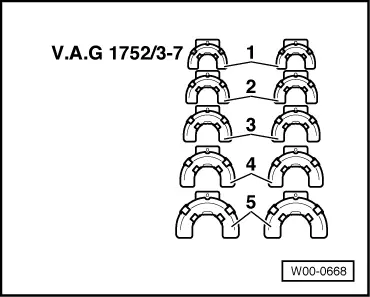

  • Spring Compressor Kit - Spring Retainer w/Inserts -VAG1752/4-

Audi Q3. W00-0668

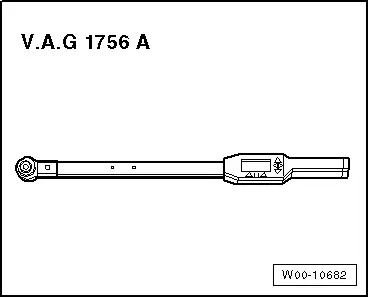

  • Digital Torque Wrench -VAG1756A-

Audi Q3. W00-10682

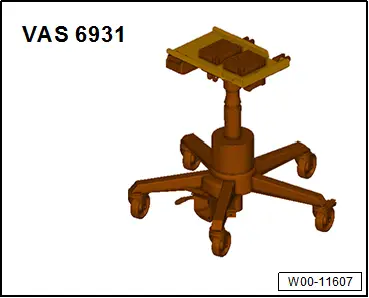

  • Engine and Gearbox Jack -VAS6931-

Audi Q3. W00-11607

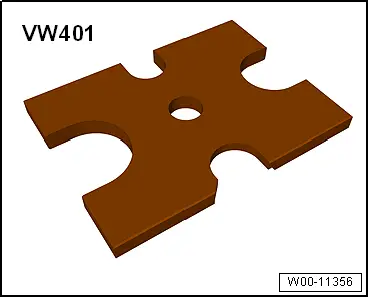

  • Press Plate -VW401-

Audi Q3. W00-11356

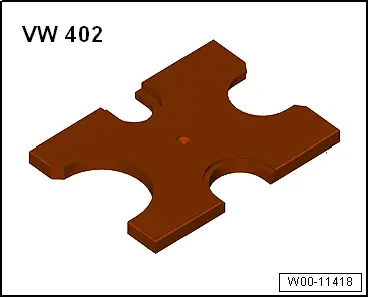

  • Press Plate -VW402-
  • Press Piece - Rod -VW408A-

Audi Q3. W00-11418

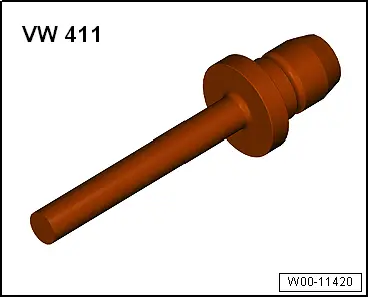

  • Press Piece - Rod -VW411-

Audi Q3. W00-11420

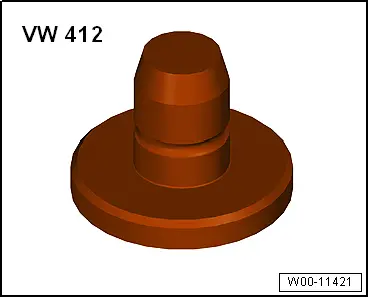

  • Press Piece - Multiple Use -VW412-
  • Press Piece - 37mm -VW416B-

Audi Q3. W00-11421

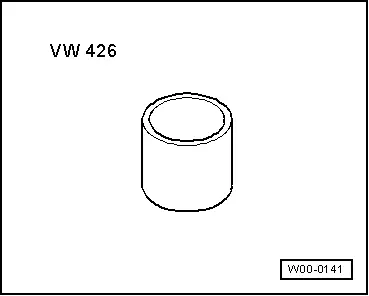

  • Press Piece - Multiple Use -VW426-

Audi Q3. W00-0141

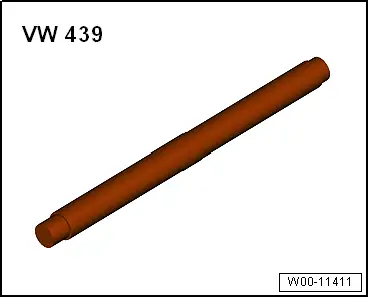

  • Press Piece - Guide Pin -VW439-
  • Press Piece - Multiple Use -VW447H-

Audi Q3. W00-11411

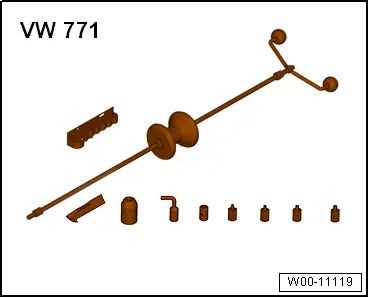

  • Slide Hammer Set -VW771-

Audi Q3. W00-11119

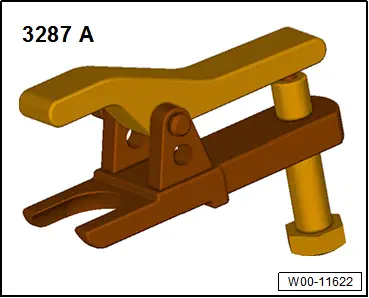

  • Puller - Ball Joint -3287A-

Audi Q3. W00-11622

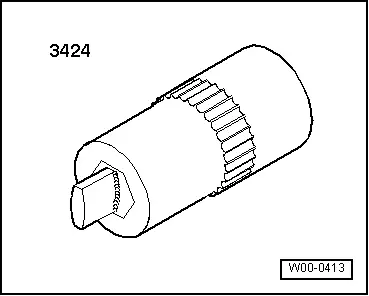

  • Spreader Tool -3424-

Audi Q3. W00-0413

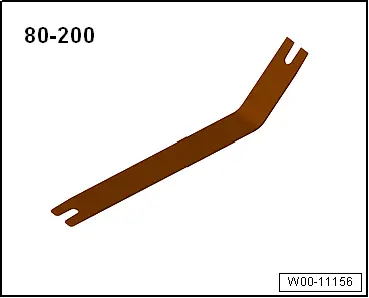

  • Pry Lever -80-200-

Audi Q3. W00-11156
