Audi Q3: Hill hold assist

If you take your foot off of the brake pedal when driving on hills, the braking force will be held for several seconds. At that time, you can start driving without the vehicle rolling backward.

Requirement: the driver's door must be closed, the engine must be on, and the vehicle must be traveling uphill.

  • To activate hill hold assist, press and hold the brake pedal for several seconds while the vehicle is stationary.

WARNING

  • If you do not begin driving immediately after releasing the brake pedal, your vehicle may begin to roll backward. Press the brake pedal or set the parking brake immediately.
  • The hill hold assist cannot hold the vehicle on inclines in every scenario (for example, on slippery or icy ground).

Messages

The following messages may appear depending on the vehicle equipment:

Hilt hold assist: unavailable

The hill hold assist is temporarily unavailable.

Press the brake pedal to secure the vehicle from rolling away unintentionally.

Gears and driving programs

When driving

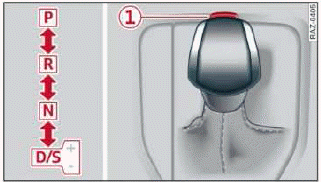

Fig. 81 Center console: selector lever

The automatic transmission shifts automatically depending on the selected gear and the current driving style. When driving with a moderate driving style, upshifting early and downshifting late will help to improve fuel economy. When driving with a sporty driving style, the transmission permits higher RPMs.

Gears

The gears are displayed next to the selector lever.

  • P (Park): parking lock
  • R (Reverse): driving in reverse
  • N (Neutral): idle
  • D (Drive): driving forward

Driving programs

Various driving programs can be selected when in the "D" position. These programs influence, for example, when the transmission shifts and how the accelerator pedal responds.

The selected driving program is displayed in the instrument cluster.

  • D (Drive): normal driving mode
  • S (Sport): sporty driving mode

Selecting a gear

Requirement: the ignition must be switched on.

  • Bring the vehicle to a full stop and press the brake pedal.
  • Press the release button (1) on the selector lever.
  • To select a gear, move the selector lever into the corresponding position.
  • The label next to the selector lever for the selected gear will light up.

"N" (Neutral) selector lever position

In the "N" selector lever position, power is not transmitted to the driving wheels. Use the selector lever in a car wash (with conveyor belts), for example.

If you unintentionally select "N" while driving (faster than 1 mph (2 km/h ) ), you can select "D" again without pressing the brake pedal.

For safety reasons, the vehicle cannot be locked when the "N" position is engaged.

"P" (Park) selector lever position

The parking lock secures the vehicle from rolling when the "P" selector lever position is selected.

The parking lock is a mechanical locking mechanism in the transmission.

If you cannot shift out of "P", for example because the vehicle has no power, you may need to use the emergency release for the parking lock.

Selecting a driving program

To switch between the current driving program and "S", push the selector lever toward the rear.

If you select the dynamic mode in Audi drive select, the "S" driving program will be activated.

When the ignition is switched off, the driving program may be reset to "D".

The S driving program might not be available in the Audi drive select offroad mode.

WARNING

  • Before you start driving, check if the label for the desired selector lever position next to the selector lever is lit up.
  • Secure the vehicle against rolling before exiting the vehicle.
  • Power is still transmitted to the wheels when the engine is running at idle. To prevent the vehicle from "creeping", you must keep your foot on the brake in all selector lever positions (except "P" and "N") when the engine is running.
  • To reduce the risk of an accident, do not press the accelerator pedal when changing gears if the vehicle is stationary and the engine is running.
  • Never select the "R" or "P" gears while driving.

    Doing so could cause an accident.

  • The vehicle can roll even if the ignition is switched off.

Tips

  • If you shift back and forth between "D" and "R" within one second, you do not need to press the brake pedal. This makes it possible to "rock" if it is stuck, for example.
  • Audi recommends the "D" driving program for everyday driving.
