Audi Q3: Front Brake Rotor, Removing and Installing

Audi Q3 (8U) 2011-2018 Service Manual / Chassis / Brake System / Mechanical Components / Front Brake Rotor, Removing and Installing

Brake Rotor, Removing and Installing, 1LJ, 1ZD Brakes

Removing

- Remove the affected brake caliper, refer to → Chapter "Brake Caliper, Removing and Installing, 1LJ, 1ZD Brakes".

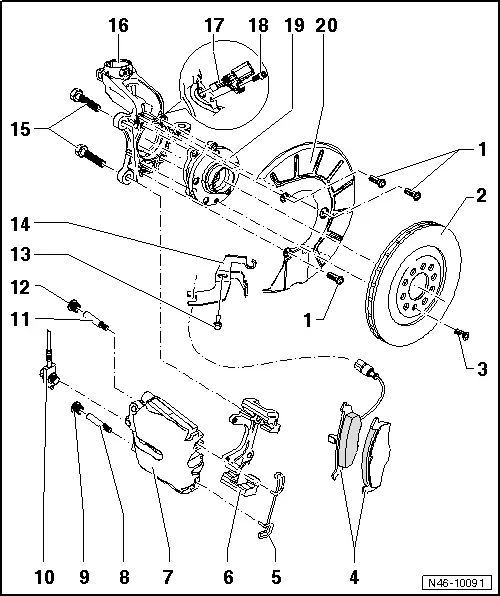

- Remove bolt -3- and remove the brake rotor.

Installing

Install in reverse order of removal. Note the following:

- Thoroughly clean the brake rotor and hub contact surfaces.

- Place the brake rotor on the hub.

  Note

Do not tilt the brake rotor when mounting it on the wheel hub.

- Tighten the bolt -3-.

- Install the brake caliper, refer to → Chapter "Brake Caliper, Removing and Installing, 1LJ, 1ZD Brakes".

  WARNING

Risk of accident!

  • Before moving the vehicle, depress brake pedal several times firmly to properly seat brake pads in their normal operating position.
  • Make sure the brakes are working correctly before driving the vehicle.

Audi Q3. N46-10091

Brake Rotor, Removing and Installing, 1LA, 1ZT Brakes

Special tools and workshop equipment required

  • Torque Wrench 1331 5-50Nm -VAG1331-

Removing

- Remove the affected brake caliper, refer to → Chapter "Brake Caliper, Removing and Installing, 1LA, 1ZT Brakes".

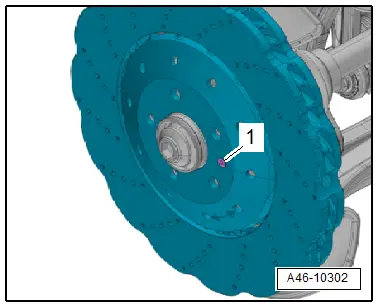

- Remove bolt -1- and remove the brake rotor.

Installing

Install in reverse order of removal. Note the following:

  Note

  • For the wear specification and wear limit, refer to → Chapter "Brakes Technical Data".
  • Always replace brake rotors on both sides of the axle.

- Thoroughly clean the brake rotor and hub contact surfaces.

- Place the brake rotor on the hub.

  Note

Do not tilt the brake rotor when mounting it on the wheel hub.

Audi Q3. A46-10302

- Tighten the bolt -1-.

- Install the brake caliper, refer to → Chapter "Brake Caliper, Removing and Installing, 1LA, 1ZT Brakes".

  WARNING

Risk of accident!

  • Before moving vehicle, depress brake pedal several times firmly to properly seat brake pads in their normal operating position.
  • Make sure the brakes are working correctly before driving the vehicle.

Audi Q3. A46-10302

Front Brake Shield, Removing and Installing

Brake Shield, Removing and Installing, 1LJ, 1ZD Brakes

Removing

- Remove the brake rotor, refer to → Chapter "Brake Rotor, Removing and Installing, 1LJ, 1ZD Brakes".

- Remove the bolts -1- and the brake shield -20-.

Installing

Install in reverse order of removal. Note the following:

- Clean the wheel hub and the brake shield.

- Position the brake shield on the wheel hub and tighten the bolts.

- Install the brake rotor, refer to → Chapter "Brake Rotor, Removing and Installing, 1LJ, 1ZD Brakes".

  WARNING

Risk of accident!

  • Before moving vehicle, depress brake pedal several times firmly to properly seat brake pads in their normal operating position.
  • Make sure the brakes are working correctly before driving the vehicle.

Audi Q3. N46-10091

Brake Shield, Removing and Installing, 1LA, 1ZT Brakes

Special tools and workshop equipment required

  • Torque Wrench 1331 5-50Nm -VAG1331-

Removing

- Remove brake rotor, refer to → Chapter "Brake Rotor, Removing and Installing, 1LA, 1ZT Brakes".

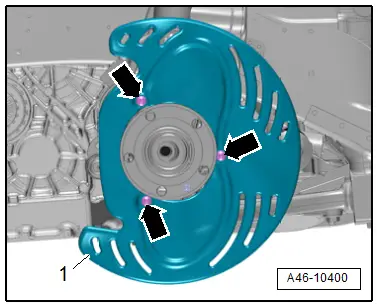

- Remove the bolts -arrows- and the cover plate -1-.

Installing

Install in reverse order of removal. Note the following:

- Install the brake rotor, refer to → Chapter "Brake Rotor, Removing and Installing, 1LA, 1ZT Brakes".

  WARNING

Risk of accident!

  • Before moving vehicle, depress brake pedal several times firmly to properly seat brake pads in their normal operating position.
  • Make sure the brakes are working correctly before driving the vehicle.

Audi Q3. A46-10400
