Audi Q3: Door Handle, Removing and Installing

Audi Q3 (8U) 2011-2018 Service Manual / Body / Body Exterior / Rear Doors / Door Handle, Removing and Installing

Housing, Removing and Installing

Removing

- Remove the sealing plugs.

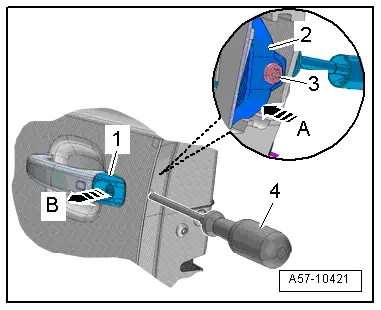

- Remove the clamping screw -3- until it stops using a screwdriver -4-.

- Press the housing retaining bracket -2- inward.

- Remove the housing -1- from the bracket -arrow B-.

Installing

Install in reverse order of removal.

Audi Q3. A57-10421

Housing Cap, Removing and Installing

Removing

- Remove the housing. Refer to → Chapter "Housing, Removing and Installing".

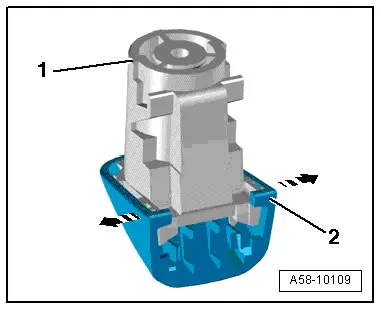

- Spread the clips -arrows- and remove the cover cap -2- from the housing -1- using an awl if necessary.

Installing

Install in reverse order of removal. Note the following:

- Press the housing cover cap on until it engages audibly.

- Install the housing. Refer to → Chapter "Housing, Removing and Installing".

Audi Q3. A58-10109

Door Handle, Removing and Installing

Removing

- Remove the housing. Refer to → Chapter "Housing, Removing and Installing".

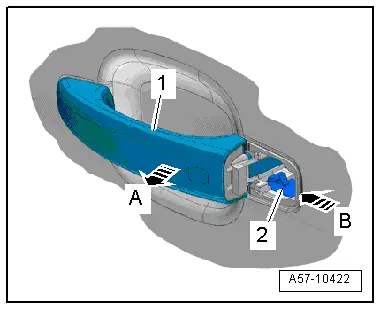

- Pull the exterior door handle -1- outward -arrow A- and hold in the "open" position.

- Press the lock cylinder/housing retaining bracket -2- inward -arrow B-. The exterior door handle is secured in the "opened" position.

Audi Q3. A57-10422

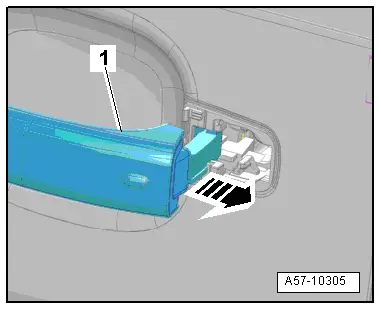

- Pull the exterior door handle -1- in the -direction of the arrow-. This disengages the handle from the operating lever in the mounting bracket.

- Tilt the exterior door handle outward and remove it from the mount on the mounting bracket.

Audi Q3. A57-10305

Installing

Install in reverse order of removal. Note the following:

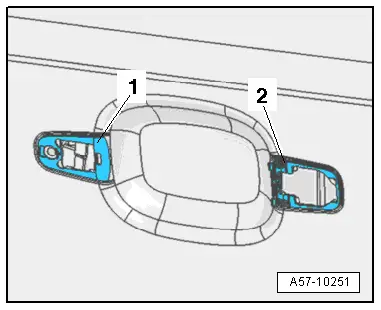

- Replace the exterior door handle washers -1- and -2- if damaged or brittle.

Audi Q3. A57-10251

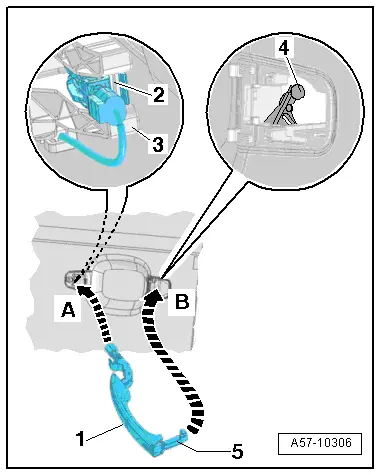

- Insert the exterior door handle -1--arrow A-. It must engage in the mount -2- on the mounting bracket -3-.

- Tilt the exterior door handle in the -direction of arrow B- and slide the "coupling plate"-5- into the mounting bracket in front of the operating lever -4-.

- Install the housing. Refer to → Chapter "Housing, Removing and Installing".

Audi Q3. A57-10306

Exterior Door Handle Trim, Removing and Installing

Removing

- Remove the outside door handle. Refer to → Chapter "Door Handle, Removing and Installing".

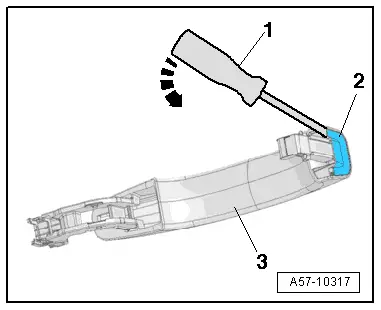

- Pry the exterior door handle trim -2- out using an awl -1- at the location shown in the illustration -arrow-.

- Remove the trim from the exterior door handle -3-.

Installing

Install in reverse order of removal. Note the following:

- Slide the exterior door handle trim in until it engages audibly.

- Install the exterior door handle. Refer to → Chapter "Door Handle, Removing and Installing".

Audi Q3. A57-10317
