Audi Q3: Cleaning/changing the rear wiper blade
.png)

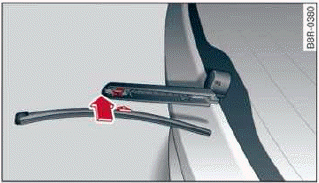

Fig. 47 Rear window wiper: installing the wiper blade
Cleaning the wiper blades
- Fold the wiper arm away from the rear window.
- For information on cleaning.
Removing the wiper blade
- Fold the wiper arm away from the rear window.
- Remove the wiper blade from its holder.
Installing the wiper blade
- Press the wiper blade mount into the retainer.
- Fold the window wiper arm back onto the rear window.
WARNING
For safety reasons, the windshield wiper blades should be replaced once or twice each year.
Messages
The following messages may appear depending
on the vehicle equipment:
if the .png)
indicator light turns on,
then there is a
windshield wiper malfunction. The message that
is also displayed indicates the cause and possible
solutions. If one of the messages does not turn
off, drive immediately to an authorized Audi
dealer or authorized Audi Service Facility to have
the malfunction repaired.
.png)
Automatic wipers:
malfunction! See owner's
manual
The light/rain sensor is malfunctioning. You can still control all functions that are not controlled by the rain sensor using the windshield wiper lever.
Drive immediately to an authorized Audi dealer or authorized Audi Service Facility to have the malfunction repaired.
