Audi Q3: Battery Charger -VAS5906-

  WARNING

Risk of injury. Follow all warning messages and safety precautions. Refer to → Chapter "Warnings and Safety Precautions".

  WARNING

Do not check or charge a Battery -A- when the visual indicator has "no color or is bright yellow". Jump starting must not be used!

There is a risk of explosion during testing, charging or jump starting.

These Batteries -A- must be replaced.

  Note

Observe the Battery Charger -VAS5906- Operating Instructions.

  • Battery Charger -VAS5906- device description. Refer to → Chapter "Battery Charger -VAS5906- Device Description".
  • Charge the Battery -A-. Refer to → Chapter "Battery, Charging with Battery Charger -VAS5906-".

Battery Charger -VAS5906- Device Description

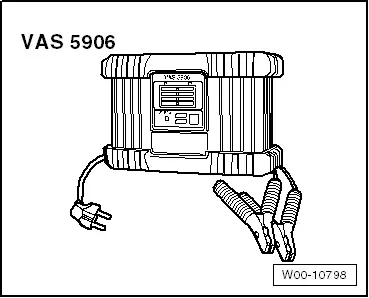

Battery Charger -VAS5906-

The Battery Charger -VAS5906- was developed especially for charging the vehicle electrical system while the vehicle is on display.

It supplies for automatic charging of 3 - 300 Ah for starter batteries.

The 14.4 V maximum charging voltage is not exceeded. All electrical consumers will be supported up to 30 A by the support charging.

After the battery -A- is completely charged, the Battery Charger -VAS5906- switches into the maintenance charging for long-term operation.

The Battery Charger -VAS5906- starts automatically and does not need any adjustments. Only the charging terminals and the network cable need to be connected.

For more information. Refer to the Battery Charger -VAS5906- Operating Instructions.

Audi Q3. W00-10798

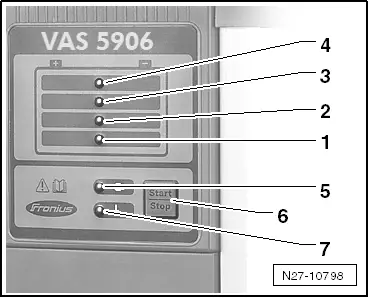

Control Field Overview

1 - 25% charge display

2 - 50% charge display

3 - 75% charge display

4 - 100% charge display

5 - Ready-to-use display

6 - Pushing the START/STOP and Setup buttons will stop and start the charging process. Enter into the setup menu and select characteristic line type (hold for 10 seconds)

7 - Display malfunction

Audi Q3. N27-10798

Battery, Charging with Battery Charger -VAS5906-

  WARNING

Risk of injury. Follow all warning messages and safety precautions. Refer to → Chapter "Warnings and Safety Precautions".

  WARNING

Do not check or charge a Battery -A- when the visual indicator has "no color or is bright yellow". Jump starting must not be used!

There is a risk of explosion during testing, charging or jump starting.

These Batteries -A- must be replaced.

Special tools and workshop equipment required

  • Battery Charger -VAS5906-

Procedure

- Place the Battery Charger -VAS5906- in the engine compartment or under the vehicle.

- Connect the Battery Charger -VAS5906- to the power supply.

The Battery Charger -VAS5906- is in idle, the display comes on when it is "ready to be used".

  WARNING

Risk of injury. Follow all warning messages and safety precautions. Refer to → Chapter "Warnings and Safety Precautions".

  Caution

  • Turn off the ignition and all electrical equipment.
  • Remove the key.

- Connect the red charge terminal (+) to the positive terminal of the Battery -A-.

  Note

On vehicles with a Start/Stop function and an installed Battery Monitoring Control Module -J367-, the black charge terminal (-) must be connected to the body ground. The Start/Stop system will malfunction when it is connected to the Battery -A- negative terminal.

- Connect the black charge terminal (-) to the negative terminal of the Battery -A-/negative connector.

The charging process starts after approximately two seconds.

LEDs show the Battery -A- charge level. When all the lamps are on, the Battery -A- is charged.

When the Battery -A- is completely charged, the Battery Charger -VAS5906- automatically switches to maintenance charging.

  Caution

Sparks can result if the charging terminals are removed too early. End the charging process by pressing the START/STOP button.

Battery -A- Charging, Ending

- Press the START/STOP-button.

- Remove the charging clamps from the battery terminals.

- Disconnect the Battery Charger -VAS5906- from the power.
