Audi Q3: Acceptable Tread Depth Variance

Model with Longitudinally Installed Engine

Tread variance for models with a longitudinally installed engine, such as A4, A5, A6, A7, A8, Q5, Q7, ...

The variance between the front and rear axle in this case may not be more then 2 mm

  Note

The technical background of the limitations are thermal pressure for the transmission oil due to a large difference in the rolling circumference of the tires.

  • For all four wheels use only tires of the same construction type and tread.
  • Always use tires with the deepest tread depth on the front axle.
  • It is possible to change tires individually. However, Audi recommends changing tires on both sides.
  • With sport differential on the rear axle, Audi recommends always replacing the tires on both sides of the rear axle.

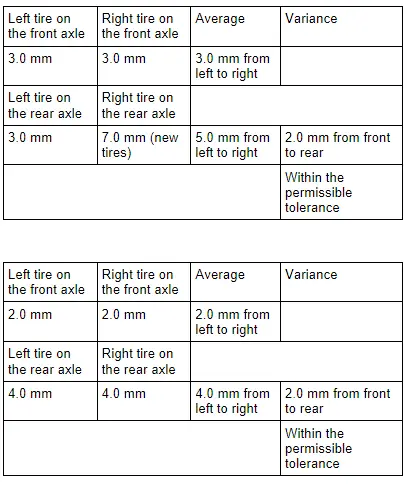

Audi Q3. The variance between the front and rear axle in this case may not be more then 2 mm

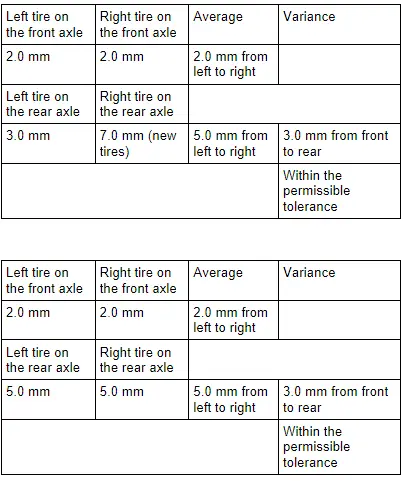

Models with Transverse Installed Engine

  Note

  • Tread depth variance for models with crossways installed engine, such as A3, TT, Q3, A1, ...
  • The variance between the front and rear axle in this case may not be more then 3 mm

  Note

The technical background of the limitations are thermal pressure for the transmission oil due to a large difference in the rolling circumference of the tires.

  • For all four wheels use only tires of the same construction type and tread.
  • Always use tires with the deepest tread depth on the front axle.
  • It is possible to change tires individually. However, Audi recommends changing tires on both sides.
  • With sport differential on the rear axle, Audi recommends always replacing the tires on both sides of the rear axle.

Audi Q3. Models with Transverse Installed Engine

Recommended Snow Chains

Recommended Snow Chains - RUD

Recommended Snow Chains - RUD - 14 Inches

Audi Q3. Recommended Snow Chains - RUD

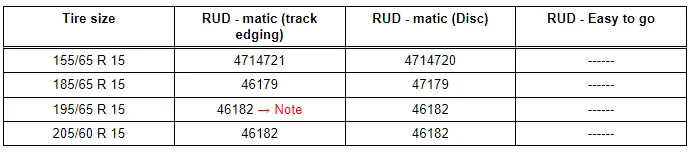

Recommended Snow Chains - RUD - 15 Inches

Audi Q3. Recommended Snow Chains - RUD

1)  and Avant RS 4 (Type 8E)

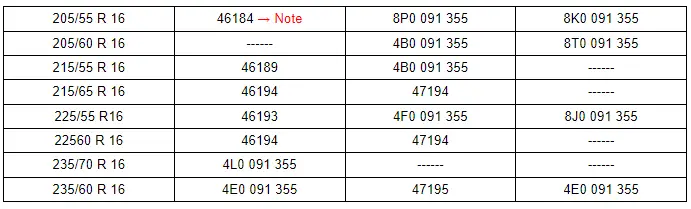

Recommended Snow Chains - RUD - 16 Inches

Audi Q3. Recommended Snow Chains - RUD

1)  and Avant RS 2

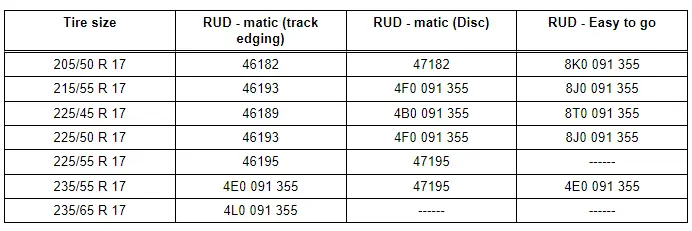

Recommended Snow Chains - RUD - 17 Inches

Audi Q3. Recommended Snow Chains - RUD

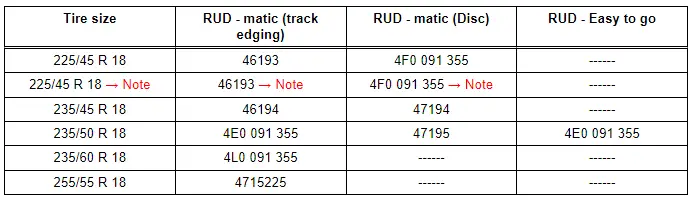

Recommended Snow Chains - RUD - 18 Inches

Audi Q3. Recommended Snow Chains - RUD

1)  and A4 (Type 8K and 8T)

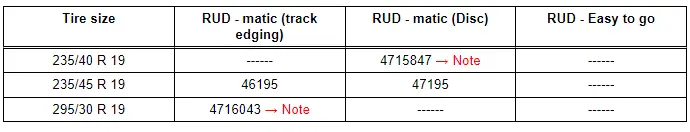

Recommended Snow Chains - RUD - 19 Inches

Audi Q3. Recommended Snow Chains - RUD

1)  R8 rear axle

2)  and RS 4 (type 8E)

Recommended Snow Chains - RUD - 20 Inches

Audi Q3. Recommended Snow Chains - RUD

1)  Q7 12-cylinder rear axle

Recommended Snow Chains - König (King)

Recommended Snow Chains - König (King) - 14 Inches

Audi Q3. Recommended Snow Chains - König (King)

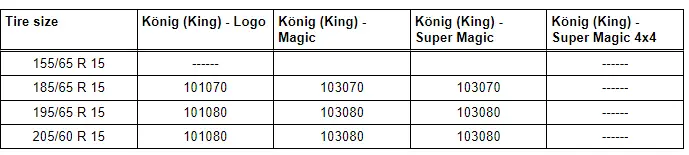

Recommended Snow Chains - König (King) - 15 Inches

Audi Q3. Recommended Snow Chains - König (King)

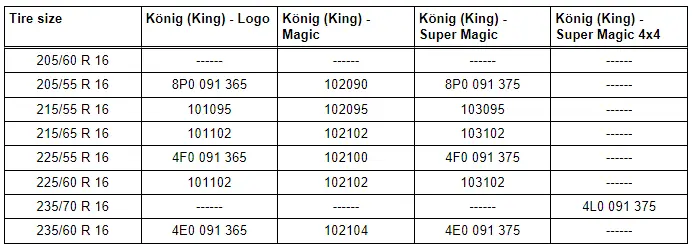

Recommended Snow Chains - König (King) - 16 Inches

Audi Q3. Recommended Snow Chains - König (King)

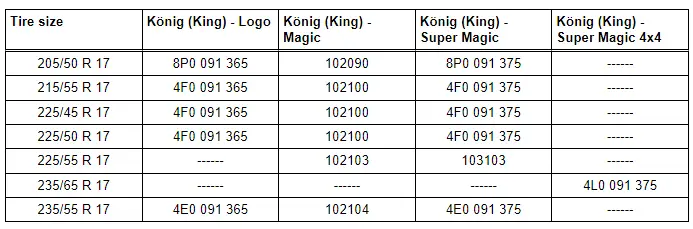

Recommended Snow Chains - König (King) - 17 Inches

Audi Q3. Recommended Snow Chains - König (King)

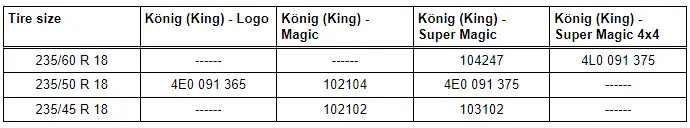

Recommended Snow Chains - König (King) - 18 Inches

Audi Q3. Recommended Snow Chains - König (King)

Recommended Snow Chains - König (King) - 19 Inches

Audi Q3. Recommended Snow Chains - König (King)
