Audi Q3: Wheel and Tire Guide

Audi Q3, Type 8U

This is the Wheel and Tire Guide for the Following Model:

"Audi Q3 / RS Q3".

Play Close Attention to the corresponding Notes and Cautions As Well As the Comments in the Document.

  Note

Inner diameter 57 mm, hole circle 112 mm, 5 wheel bolts, tightening specification 140 Nm

Audi Q3 Type 8U, MY 2011-2015

2.0L TFSI, 147 kW

  Note

  • These are the tire/wheel combinations that are technically possible for the vehicle.
  • Check if the desired rims or wheel sizes are valid for the affected vehicle.
  • Always read the "General Information" for this. Refer to → Chapter "General Information".

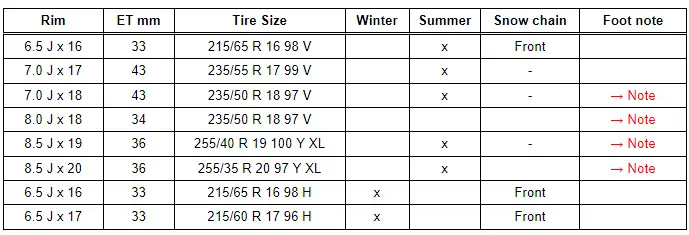

Audi Q3. 2.0L TFSI, 147 kW

1)  Only with additional wheel covers. Refer to the Parts Catalog.

XL = Extra Load, Reinforced

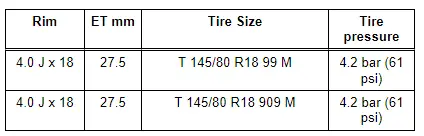

Spare Tire

Audi Q3. Spare Tire

Q3 Rims, Type 8U

  Note

  • These are the tire/wheel combinations that are technically possible for the vehicle.
  • Check if the desired rims sizes are valid for the affected vehicle.
  • Always read the "General Information" for this. Refer to → Chapter "General Information".

Always read the "General Information".

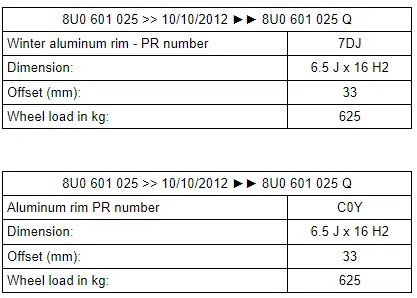

6.5 J x 16 Rim

  Note

  • Refer to the "Parts Catalog" for assistance to order the correct rims.
  • Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Catalog".

Audi Q3. 6.5 J x 16 Rim

Audi Q3. 6.5 J x 16 Rim

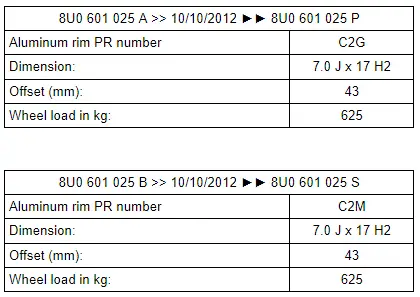

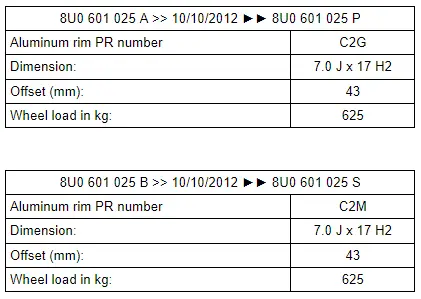

Rim - 7.0 J x 17

  Note

  • Refer to the "Parts Catalog" for assistance to order the correct rims.
  • Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Catalog".

Audi Q3. Rim - 7.0 J x 17

Audi Q3. Rim - 7.0 J x 17

Rim - 7.0 J x 18

  Note

Only with additional 18" wheel cover. Refer to "Parts Catalog".

  Note

  • Refer to the "Parts Catalog" for assistance to order the correct rims.
  • Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Catalog".

Audi Q3. Rim - 7.0 J x 18

Audi Q3. Rim - 7.0 J x 18

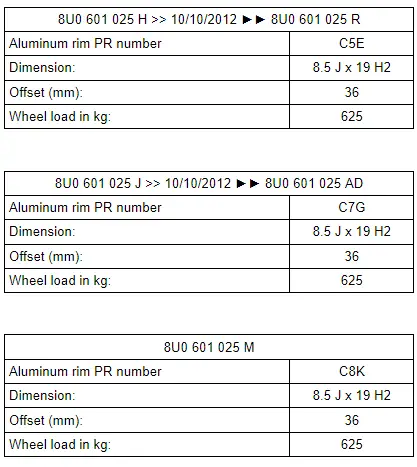

Rim - 8.5 J x 19

  Note

Only with additional 19" wheel cover. Refer to "Parts Catalog".

  Note

  • Refer to the "Parts Catalog" for assistance to order the correct rims.
  • Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Catalog".

Audi Q3. Rim - 8.5 J x 19

Audi Q3. Rim - 8.5 J x 19

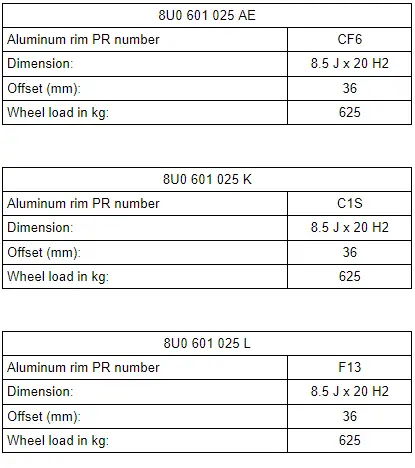

Rim - 8.5 J x 20

  Note

  • Refer to the "Parts Catalog" for assistance to order the correct rims.
  • Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Catalog".

Audi Q3. Rim - 8.5 J x 20

Audi Q3. Rim - 8.5 J x 20

RS Q3 Rims

Audi Q3. RS Q3 Rims

9.0 J x 18 Rim

  Note

  • Refer to the "Parts Catalog" for assistance to order the correct rims.
  • Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Catalog".

Audi Q3. 9.0 J x 18 Rim

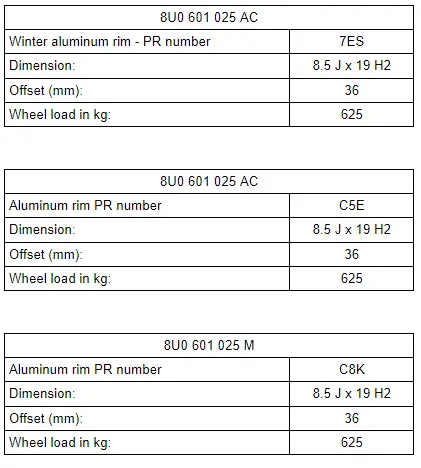

Rim - 8.5 J x 19

  Note

  • Refer to the "Parts Catalog" for assistance to order the correct rims.
  • Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Catalog".

Audi Q3. Rim - 8.5 J x 19

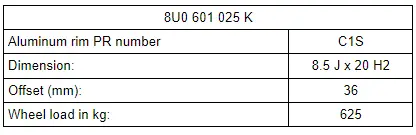

Rim - 8.5 J x 20

  Note

  • Refer to the "Parts Catalog" for assistance to order the correct rims.
  • Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Catalog".

Audi Q3. Rim - 8.5 J x 20

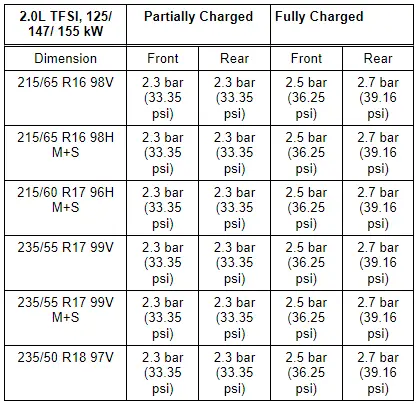

Air Pressures

Q3 Air Pressures, Type 8U

2.0L TFSI, 125/ 147/ 155 kW

  Note

  • The tire pressures must adhere to the specifications on the tire pressure label in the vehicle.
  • If there is no tire pressure label in the vehicle, one may be ordered. Refer to Parts Catalog.

Audi Q3. Air Pressures

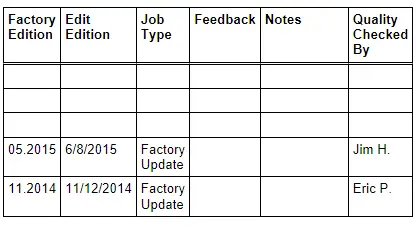

Revision History

DRUCK NUMBER: A005A006521

Audi Q3. Revision History
