Audi Q3: Technical data

Identification data

Vehicle data label

Identification data

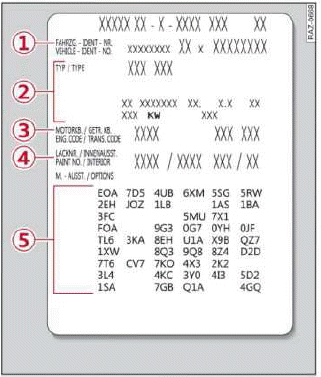

Fig. 176 Vehicle identification label

The vehicle identification label fig. 176 is located in the luggage compartment under the cargo floor cover.

The sticker contains the following vehicle data:

  1. Vehicle Identification Number (VIN)
  2. Vehicle type, displacement, motor output, transmission
  3. Motor and transmission codes
  4. Paint and interior codes
  5. Optional equipment numbers

Vehicle Identification Number

The Vehicle Identification Number (VIN) is located in the following areas:

  • Select on the home screen: VEHICLE > Settings & Service > Vehicle info.
  • On the vehicle identification label
  • At the front behind the windshield
  • Stamped in the right front footwell under the carpet

Notes about technical data

The values may vary based on special equipment as well as market-specific equipment and measuring methods.

Please note that the specifications listed in the vehicle documentation always take precedence.

Tips

Any technical data that is missing was not available at the time of printing.

Vehicle data

Dimensions

Vehicle data

Capacities

Vehicle data

A/C system refrigerant oil

The exact type and amount of refrigerant oil in the A/C system is specified on the sticker on the refrigerant compressor.

Vehicle data

a) The specifications depend on vehicle equipment.

Vehicle data

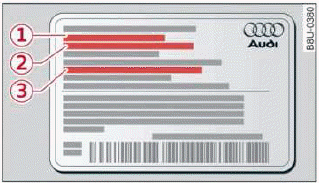

Fig. 177 Safety certificate

Gross Vehicle Weight Rating (GVWR)

The maximum permitted total weight 1 of the vehicle is listed on the safety certificate on the side area of the door or on the driver's door pillar.

Gross Axle Weight Rating (GAWR)

The maximum permitted load on the front axle 2 or the rear axle 3 is listed on the safety certificate on the side area of the door or on the driver's door pillar.

Load

The maximum permitted load is listed on the tire pressure label on the driver's door pillar.

Roof load

The maximum permitted roof load is 165 lbs (75 kg).

Trailer load

Vehicle data
