Audi Q3: Overview - Wheel Bearing

Audi Q3 (8U) 2011-2018 Service Manual / Chassis / Suspension, Wheels, Steering / Front Suspension / Overview - Wheel Bearing

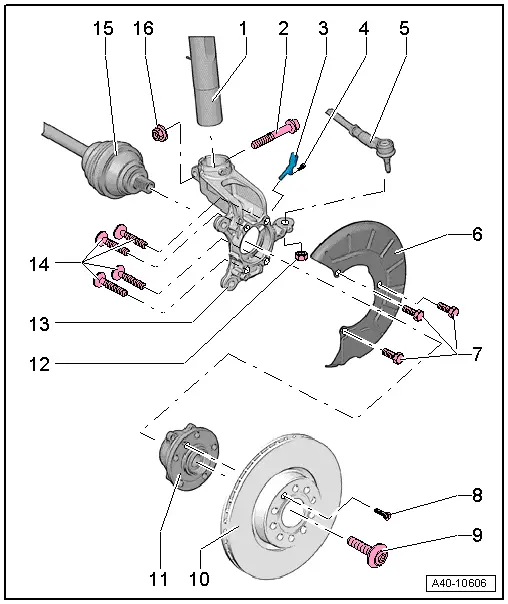

Audi Q3. Overview - Wheel Bearing

1 - Suspension Strut

2 - Bolt

  • 70 Nm + 90º
  • Always replace if removed
  • Bolt point must face in direction of travel.

3 - Front Speed Sensor

  • Removing and installing. Refer to → Brake System; Rep. Gr.45; Sensors; Front ABS Wheel Speed Sensor G45/G47, Removing and Installing.

4 - Bolt

  • Tightening specification. Refer to → Brake System; Rep. Gr.45; Sensors; Overview - Front Axle Speed Sensor.

5 - Tie Rod End

6 - Brake Shield

7 - Bolt

  • For the tightening specification. Refer to → Brake System; Rep. Gr.46; Front Brakes; Overview - Front Brakes.

8 - Bolt

  • For the tightening specification. Refer to → Brake System; Rep. Gr.46; Front Brakes; Overview - Front Brakes.

9 - Bolt

  • 200 Nm +180º. Refer to → Chapter "Drive Axle Threaded Connection, Loosening and Tightening".
  • Always replace if removed
  • Before installing, clean the threads in the CV joint with a tap.

10 - Brake Rotor

11 - Wheel Bearing Unit

  • Removing and installing. Refer to → Chapter "Wheel Bearing Unit, Removing and Installing".

12 - Nut

  • 50 Nm
  • Always replace if removed

13 - Wheel Bearing Housing

  • Removing and installing. Refer to → Chapter "Wheel Bearing Housing, Removing and Installing".

14 - Bolt

  • 70 Nm + 90º
  • Always replace if removed

15 - Drive Axle

  • Do not let the drive axle hang down. The inner joint could be damaged if it is bent too far.
  • Lightly coat the splines on the outer joint with assembly paste before installing the outer joint into the wheel hub. Refer to the Parts Catalog.

16 - Hex Nut

  • Always replace if removed
