Audi Q3: Ground Cable with Battery Monitoring Control Module -J367-, Removing and Installing

Audi Q3 (8U) 2011-2018 Service Manual / Electrical System / Electrical Equipment / Battery, Starter, Generator, Cruise Control / Ground Cable with Battery Monitoring Control Module -J367-, Removing and Installing

Ground Cable with Battery Monitoring Control Module -J367-, Removing and Installing, Engine Compartment Battery Version 1

Removing

- Turn off the ignition.

- Vehicles with ignition lock: Remove the key.

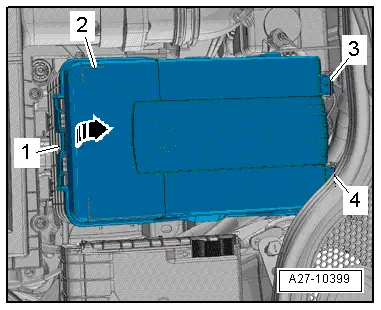

- Push the release button -1- and pivot the battery cover -2- upwards at the same time the guides on the battery trim panel mount -3 and 4- disengage at the rear.

Audi Q3. A27-10399

- If equipped open the heat shield cover.

- If equipped, remove the cover over the battery negative terminal.

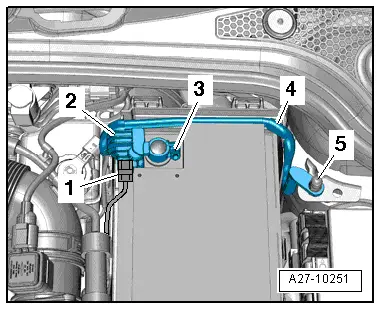

- Loosen the nut several turns and remove the battery ground cable terminal -3- from the battery terminal.

- Disconnect the connector -1-.

- Remove the nut -5- and ground cable -4- with the Battery Monitoring Control Module -J367--2-.

Installing

Install in reverse order of removal. Note the following:

- Connect the battery.

Audi Q3. A27-10251

Ground Cable with Battery Monitoring Control Module -J367-, Removing and Installing, Engine Compartment Battery Version 2

Removing

- Turn off the ignition.

- Vehicles with ignition lock: Remove the key.

- Remove the air filter housing. Refer to → Rep. Gr.23; Air Filter; Air Filter Housing, Removing and Installing or → Rep. Gr.24; Air Filter; Air Filter Housing, Removing and Installing.

- Push the release button -1- and pivot the battery cover -2- upwards at the same time the guides on the battery trim panel mount -3 and 4- disengage at the rear.

- Remove the bolts -arrows-.

Audi Q3. A27-10399

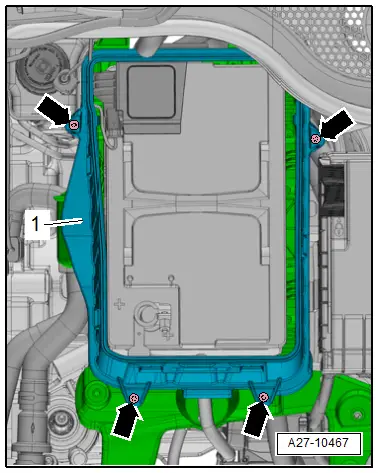

- Remove the front battery trim panel -1- upward.

- Remove the cover -4- over the battery negative terminal.

- Loosen the nut several turns and remove the battery ground cable terminal -3- from the battery terminal.

- Disconnect the connector -1-.

Audi Q3. A27-10467

- Remove the nut -6- and ground cable -5- with the Battery Monitoring Control Module -J367--2-.

Installing

Install in reverse order of removal. Note the following:

- Connect the battery.

Audi Q3. A27-10438

Ground Cable with Battery Monitoring Control Module - J367-, Removing and Installing, Battery in the Luggage Compartment

Removing

- Turn off the ignition.

- Vehicles with ignition lock: Remove the key.

- Remove the luggage compartment floor panel cover.

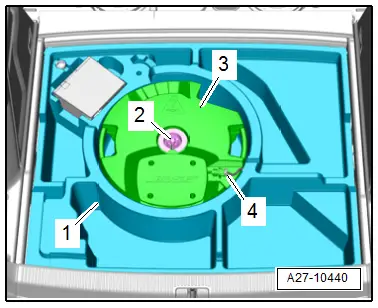

- On vehicles with a subwoofer disconnect the connector -4-, remove the bolt -2- and remove the subwoofer -3-.

- Remove the molded insert -1-.

- Remove the bolts -arrows-.

- If equipped, free up the wiring harness -3-.

- Remove the battery cover -1-.

Audi Q3. A27-10440

- Remove the heat shield -2- from the battery.

- Remove the cover -7- over the battery negative terminal.

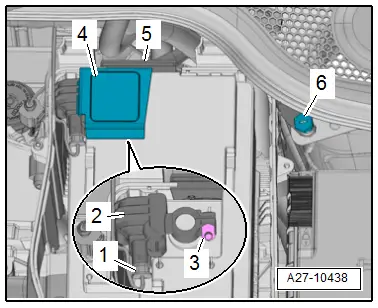

- Loosen the nut several turns and remove the battery ground cable terminal -1- from the battery terminal.

- Disconnect the connector -2-.

- Remove the nut -4- and ground cable -5- from the threaded pins.

Audi Q3. A27-10473

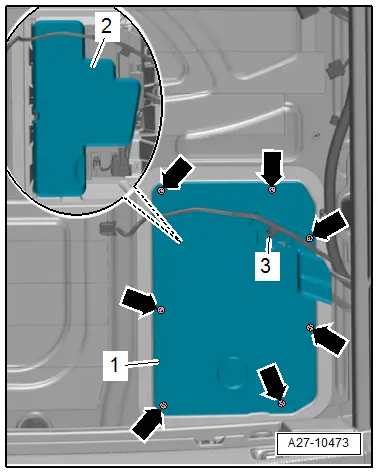

- Remove the ground cable -6- with the Battery Monitoring Control Module - J367--3-.

Installing

Install in reverse order of removal. Note the following:

  Note

Before connecting the connector on the Battery Monitoring Control Module -J367- wait 30 seconds.

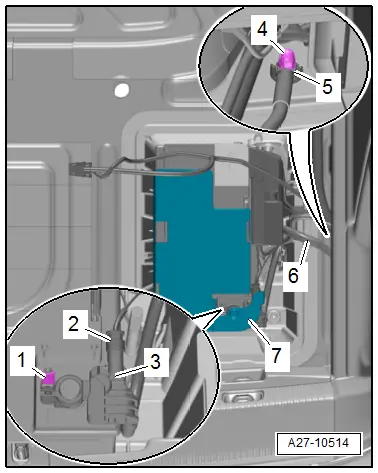

- Connect the battery ground cable terminal to the battery negative pole "-" by hand and tighten the nut -1-.

Audi Q3. A27-10514

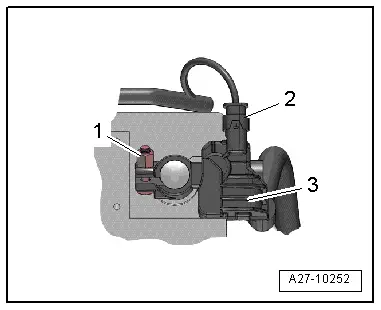

- Wait 30 seconds and then connect the connector -2- to the Battery Monitoring Control Module -J367--3-.

When the battery is connected, the following steps must be performed:

  • Activate the one-touch up/one-touch down power window regulators. Refer to the Owner's Manual.
  • Check DTC memories of all control modules and erase "Undervoltage" DTC if necessary. Refer to Vehicle Diagnostic Tester.

  Note

After connecting the power supply, the ABS warning lamp may only go out after the vehicle has been driven a few yards.

Audi Q3. A27-10252
