Audi Q3: Door Windows

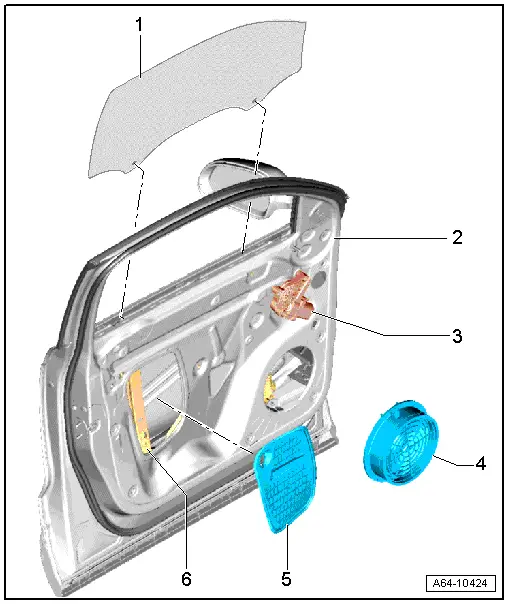

Overview - Front Door Window

Audi Q3. Overview - Front Door Window

1 - Door Window

  • Removing and installing. Refer to → Chapter "Front Door Window, Removing and Installing".

2 - Door

3 - Driver Window Regulator Motor -V147-

4 - Speaker

  • Removing. Refer to → Communication; Rep. Gr.91; Sound System; Component Location Overview - Sound System.

5 - Door Inner Cover

  • Removing and installing. Refer to → Chapter "Door Inner Cover, Removing and Installing".

6 - Window Regulator

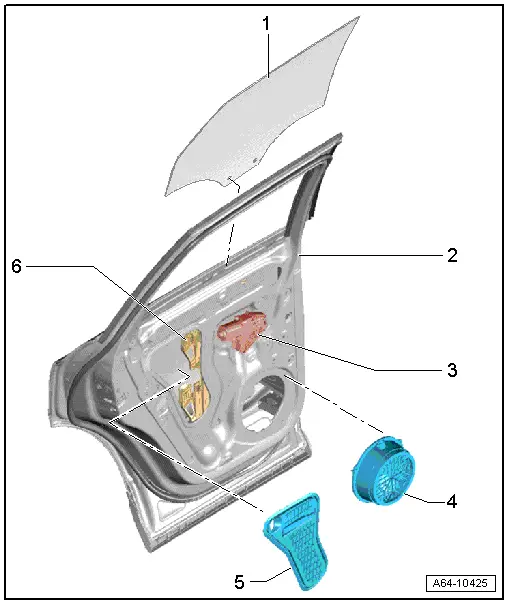

Overview - Rear Door Window

Audi Q3. Overview - Rear Door Window

1 - Rear Door Window

2 - Rear Door

3 - Left Rear Window Regulator Motor -V26-

  • Removing → Chapter "Window Regulator Motor, Removing and Installing"

4 - Speaker

  • Removing. Refer to → Communication; Rep. Gr.91; Sound System; Component Location Overview - Sound System.

5 - Door Inner Cover

  • Removing and installing. Refer to → Chapter "Door Inner Cover, Removing and Installing".

6 - Window Regulator

Front Door Window, Removing and Installing

Audi Q3. Front Door Window, Removing and Installing

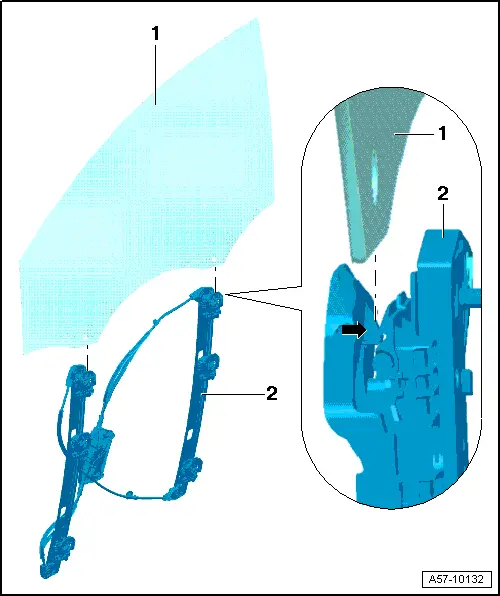

1 - Door Window

  • The door inner cover and speaker are removed. Refer to → Chapter "Door Inner Cover, Removing and Installing" and → Communication; Rep. Gr.91; Component Location Overview - Sound System.

- To remove, release catches -arrow- from coupling plate -2- with a screwdriver and pull window -1- in window guide up slightly.

- Tilt the window forward and remove it upward from the door.

2 - Window Regulator

  • The window regulator remains installed inside the door.

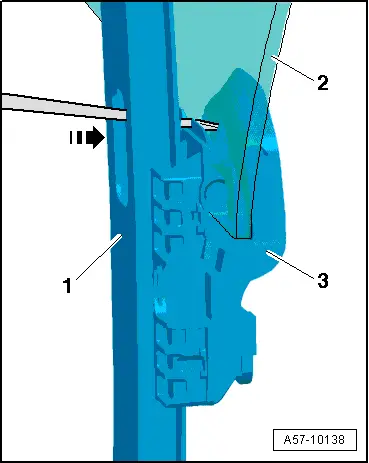

Releasing the Door Window

- Lower the door window.

- Using a screwdriver, press coupling plate -3- outward to release through cut-out in window guide -1- and hole in door window -2-.

- Remove window upward from coupling plate.

- Tilt the window forward and pull it straight upward and out of the window guide.

Audi Q3. A57-10138

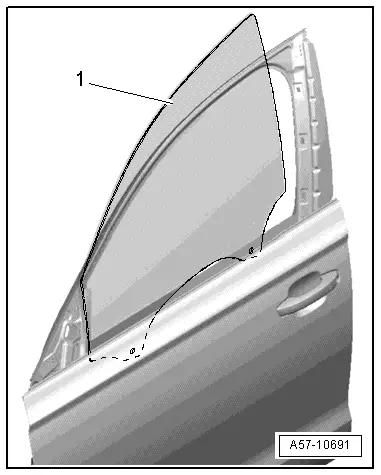

Door Window, Inserting

- Insert door window -1- diagonally toward front in door window guide.

- Align window in front and rear window guides and slide it down.

- Press window down into coupling plate.

- This engages coupling plate in window.

Audi Q3. A57-10691

Rear Door Window, Removing and Installing

Special tools and workshop equipment required

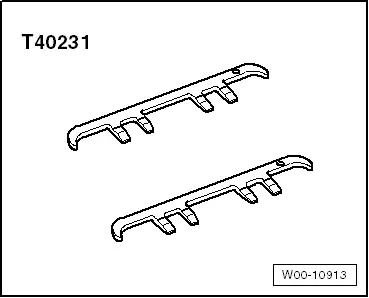

  • Side Window Removal Tool -T40231-

Audi Q3. W00-10913

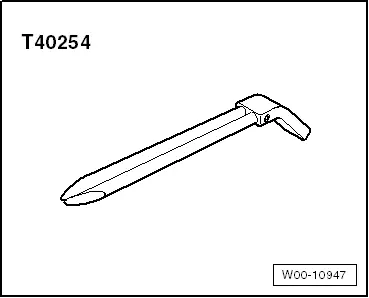

  • Heat Insulating Glass Release Tool -T40254-

Audi Q3. W00-10947

Remove the Door Window with Standard Glass

- Remove the door trim panel. Refer to → Body Interior; Rep. Gr.70; Rear Door Trim Panels; Rear Door Trim Panel, Removing and Installing.

- Remove the inner window shaft strip.

- Remove the door inner cover. Refer to → Chapter "Door Inner Cover, Removing and Installing".

- Remove the door window guide rail. Refer to → Chapter "Door Window Guide Rail, Removing and Installing".

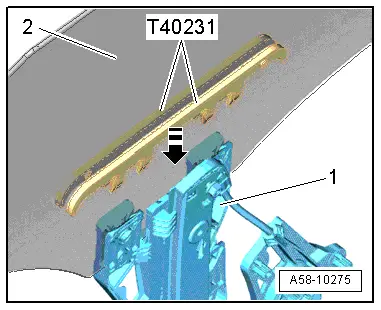

- Insert the Side Window Removal Tool -T40231- on both side of the door window and push it downward on the mount on the window regulator -1-.

- The mount on the window regulator bends open so that the door window can be lifted upward by the mounting pin.

- Remove the door window -2- upward out of the mount and remove it from the door.

Audi Q3. A58-10275

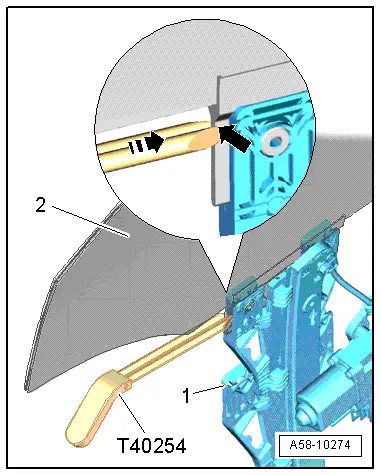

Removing a Door Window with Tinted Glass

- Insert the Heat Insulating Glass Release Tool -T40254- in direction of arrow completely onto the adapter -arrow-.

- The mount on the window regulator bends open so that the door window can be lifted upward by the mounting pin.

Audi Q3. A58-10274

Door Window, Installing

  Note

The mounting pins must be pushed in first with new door windows with standard glass.

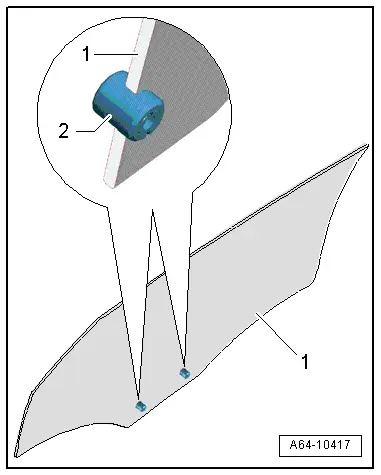

- Insert the mounting pins -2- into the center of the door window -1- and push the clamping pin in so that it is flush.

Audi Q3. A64-10417

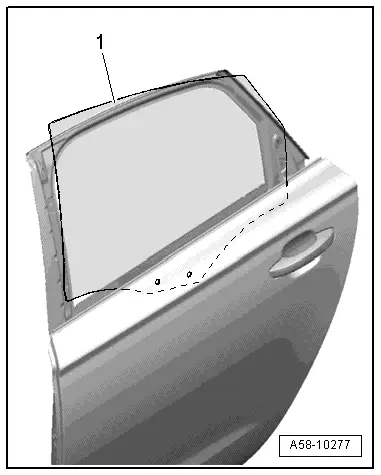

- Insert door window -1- diagonally toward back in door window guide.

- Line up the door window inside the window guides and push it down. Make sure the door window move exactly into the front and rear mount.

- Press window down into window regulator mount.

- The mounting pins will audibly lock into the mount.

Audi Q3. A58-10277

Special Tools

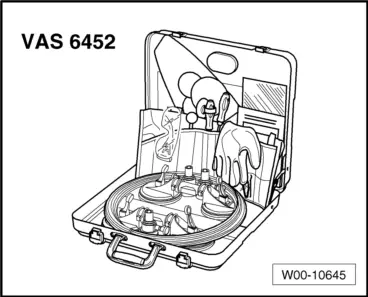

Cutting Tool for Bonded Windows -VAS6452-

Audi Q3. W00-10645

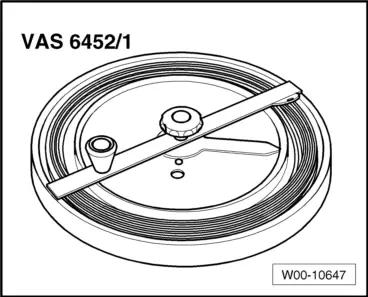

Cutting Tool for Bonded Windows - Wire Reel -VAS6452/1-

Cutting Tool for Bonded Windows - Wire -VAS6452/2-

Audi Q3. W00-10647

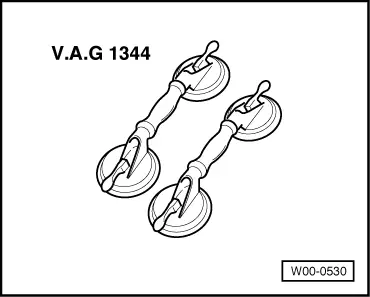

Double Suction Lifter -VAG1344-

Audi Q3. W00-0530

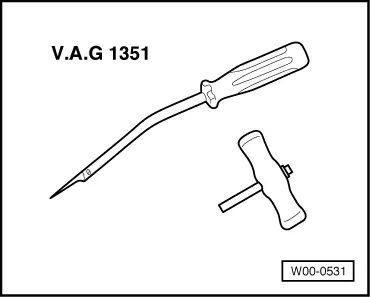

Bonded Window Tool Kit -VAG1351-

Bonded Window Tool Kit - Pull Handle -VAG1351/1-

Audi Q3. W00-0531

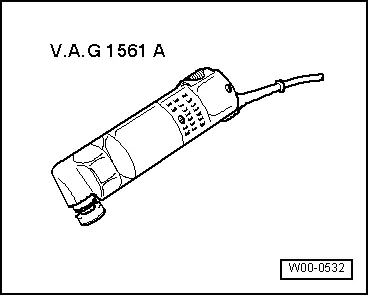

Window Cutter -VAG1561A-

Audi Q3. W00-0532

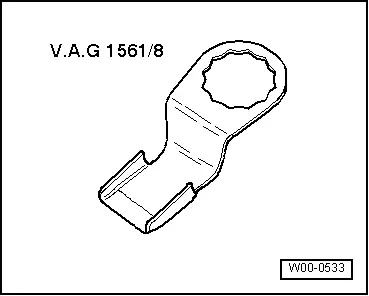

Window Cutter - Scraper (2 pc.) -VAG1561/7+8-

Audi Q3. W00-0533

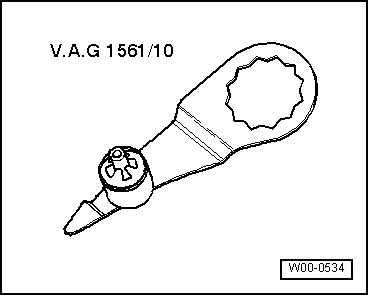

Blade, Offset -VAG1561/10-

Audi Q3. W00-0534

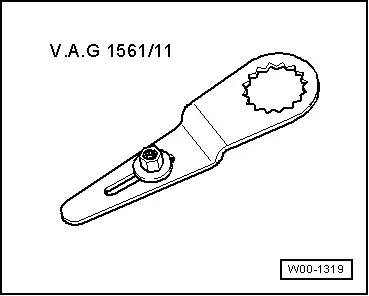

Window Cutter - Universal Blade (2 pc.) -VAG1561/11-

Audi Q3. W00-1319

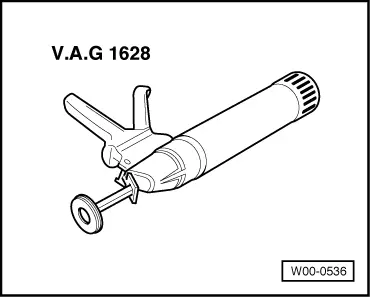

Cartridge Gun -VAG1628-

Audi Q3. W00-0536

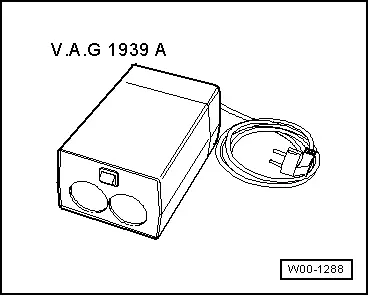

Cartridge Heater -VAG1939A-

Audi Q3. W00-1288

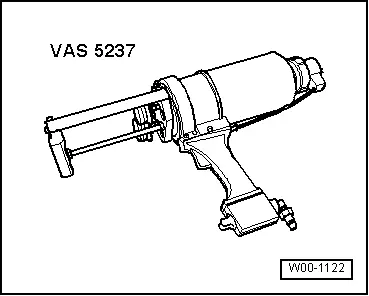

Double Cartridge Gun -VAS5237-

Audi Q3. W00-1122
