Audi Q3: Special Tools

Audi Q3 (8U) 2011-2018 Service Manual / Chassis / Suspension, Wheels, Steering / Rear Suspension / Special Tools

Special tools and workshop equipment required

  • Shock Absorber Set -T10001-

Audi Q3. W00-11171

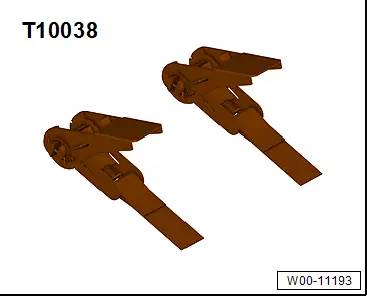

  • Tensioning Strap -T10038-
  • Tripod Joint Tool -T10065-

Audi Q3. W00-11193

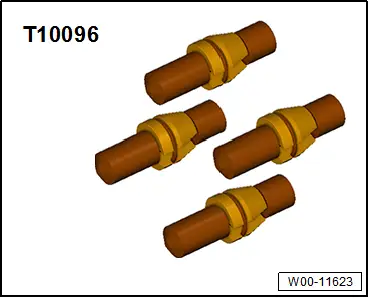

  • Locating Pins -T10096-

Audi Q3. W00-11623

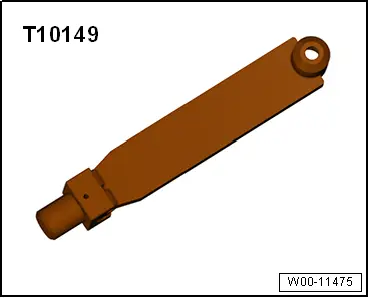

  • Engine/Gearbox Jack Adapter - Wheel Hub Support -T10149-

Audi Q3. W00-11475

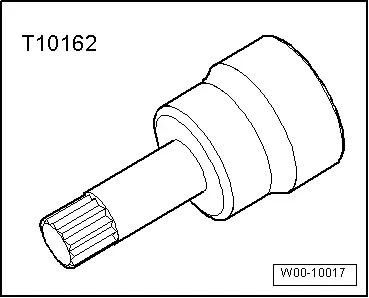

  • Socket - Xzn 18 -T10162-

Audi Q3. W00-10017

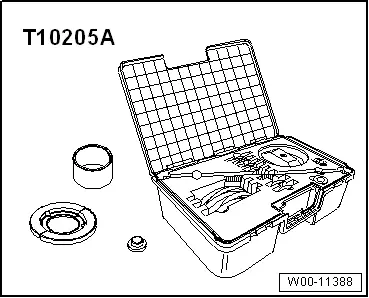

  • Bearing Installer - Wheel Hub/Bearing Kit - Pressure Head -T10205/13- from the Bearing Installer - Wheel Hub/Bearing Kit -T10205A-

Audi Q3. W00-11388

  • Hydraulic Press - Bushing Assembly Tool Kit -T10230-

Audi Q3. W00-10227

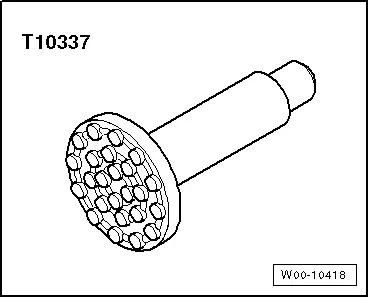

  • Engine/Gearbox Jack - Gearbox Support -T10337-

Audi Q3. W00-10418

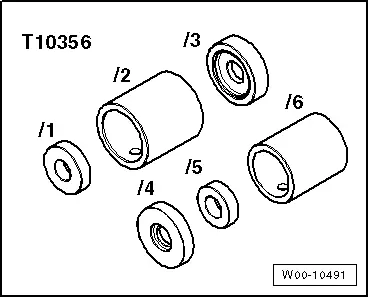

  • Subframe Bushing Assembly Tool Kit -T10356-

Audi Q3. W00-10491

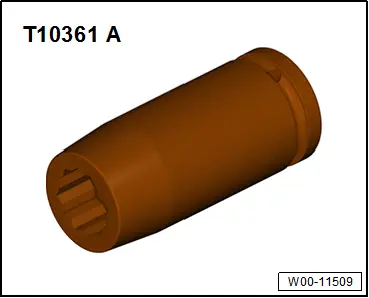

  • Socket AF 24 mm -T10361A-

Audi Q3. W00-11509

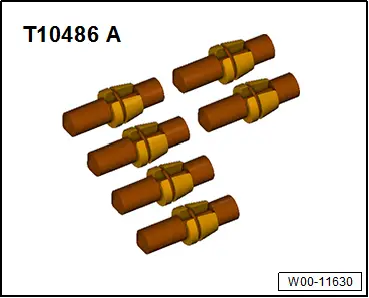

  • Assembly Tool, Sub-frame Alignment -T10486A-

Audi Q3. W00-11630

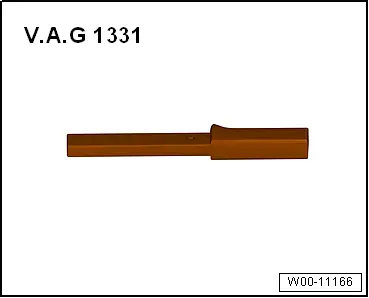

  • Torque Wrench 1331 5-50Nm -VAG1331-

Audi Q3. W00-11166

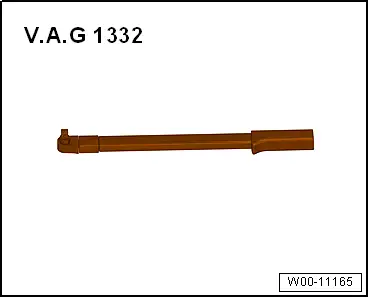

  • Torque Wrench 1332 40-200Nm -VAG1332-

Audi Q3. W00-11165

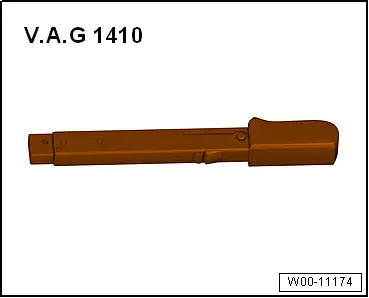

  • Torque Wrench -VAG1410-

Audi Q3. W00-11174

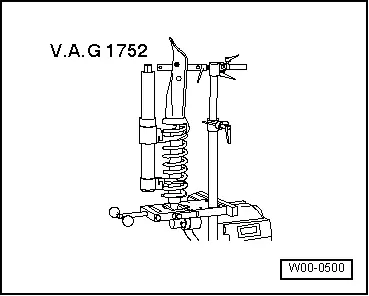

  • Spring Compressor Kit - Spring Tensioner -VAG1752/1-

Audi Q3. W00-0500

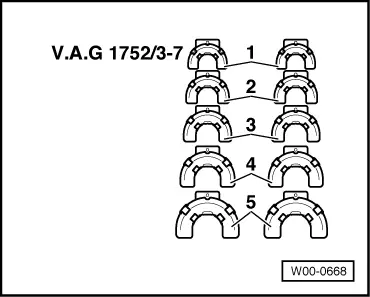

  • Spring Compressor Kit - Spring Retainer with Inserts -VAG1752/3A-
  • Spring Compressor Kit - Adapter Blocks -VAG1752/9-

Audi Q3. W00-0668

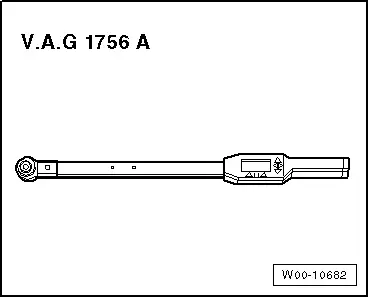

  • Digital Torque Wrench -VAG1756A-

Audi Q3. W00-10682

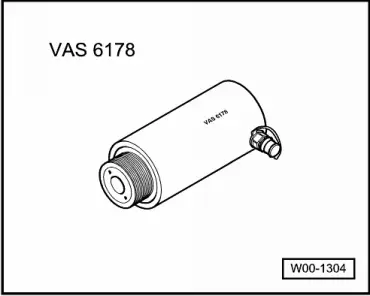

  • Hydraulic Press -VAS6178-

Audi Q3. W00-1304

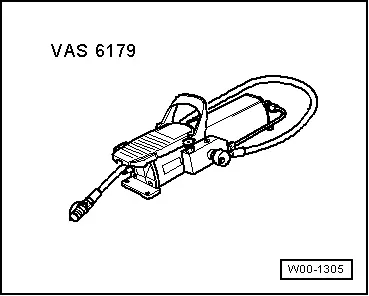

  • Pneumatic/Hydraulic Foot Pump -VAS6179-

Audi Q3. W00-1305

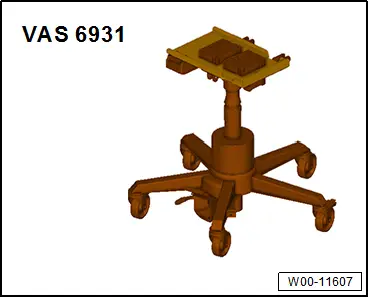

  • Engine and Gearbox Jack -VAS6931-
  • Circlip Pliers -VW161A-

Audi Q3. W00-11607

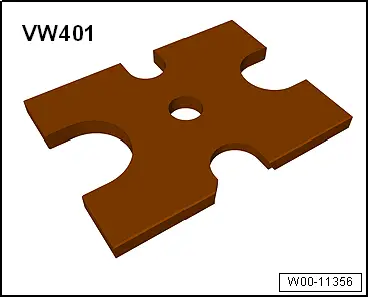

  • Press Plate -VW401-

Audi Q3. W00-11356

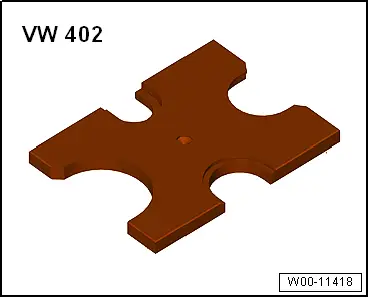

  • Press Plate -VW402-
  • Press Piece - Rod -VW408A-

Audi Q3. W00-11418

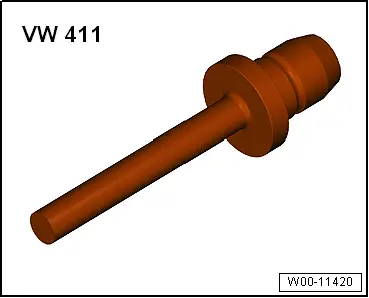

  • Press Piece - Rod -VW411-
  • Press Piece - 37mm -VW416B-
  • Press Piece - Multiple Use -VW447H-

Audi Q3. W00-11420

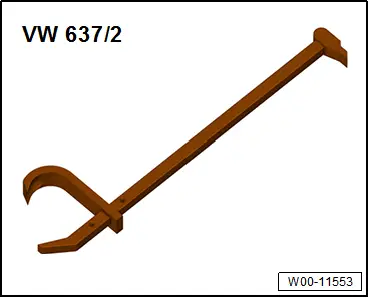

  • Puller - Grease Cap -VW637/2-

Audi Q3. W00-11553

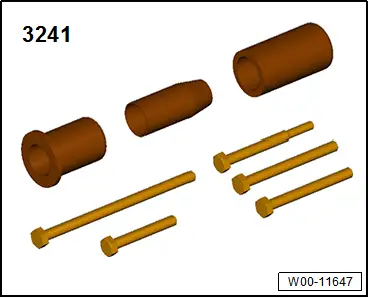

  • Camshaft Installer Kit - Sleeve -3241/4- from the Seal Installer - Camshaft Installer Kit -3241-
  • Bearing Installer - Control Arm -3346-
  • Bearing Installer - Carrier Bearing -3350-

Audi Q3. W00-11647

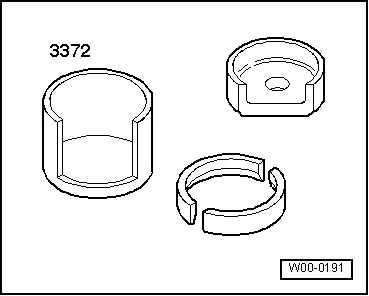

  • Front Subframe Mount Kit -3372-
  • Fitting Sleeve -3378-
  • Torque Adapter -3390-

Audi Q3. W00-0191
