Audi Q3: Child Seat Anchors

Overview - Front Child Seat Anchors

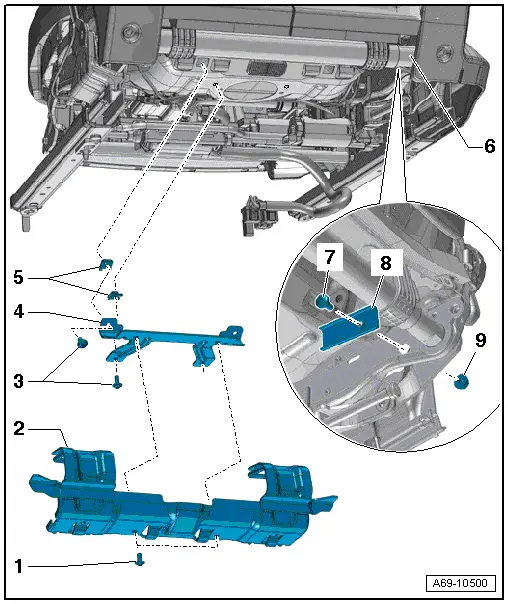

Audi Q3. Overview - Front Child Seat Anchors

1 - Bolt

  • 8 Nm
  • Quantity: 2
  • Replace
  • Install with locking compound. Refer to the Parts Catalog for the locking compound.

2 - Child Seat Anchor

  • passenger seat only
  • Bolted with the seat pan
  • Check after an accident. Refer to → Chapter "Child Seat Anchors, Checking After a Collision".
  • Replace damaged or deformed child seat anchor
  • Removing and installing. Refer to → Chapter "Front Child Seat Anchor, Removing and Installing".

3 - Bolt

  • 8 Nm
  • Quantity: 4
  • Replace
  • Install with locking compound. Refer to the Parts Catalog for the locking compound.

4 - Retaining Plate

  • Passenger seat only
  • Bolted with the seat pan
  • Check after an accident. Refer to → Chapter "Child Seat Anchors, Checking After a Collision".
  • Replace if damaged
  • Removing and installing. Refer to → Chapter "Front Child Seat Anchor Retaining Plate, Removing and Installing".

5 - Spring Nut

  • Quantity: 4
  • Inserted in the seat pan
  • Replace any damaged or deformed threaded clips

6 - Seat Pan

7 - Bolt

  • 18 Nm

8 - Reinforcement

  • Only on power seats
  • Only located on the sill panel side of the seat
  • Check after an accident. Refer to → Chapter "Child Seat Anchors, Checking After a Collision".
  • Replace if damaged
  • Removing and installing. Refer to → Chapter "Front Child Seat Anchor Reinforcement, Removing and Installing".

9 - Nut

  • 18 Nm

Overview - Rear Child Seat Anchors

Overview - Rear Child Seat Anchors, Rear Seat

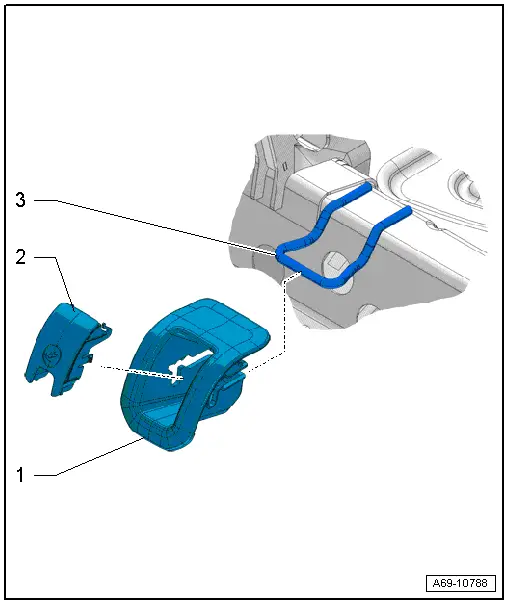

Audi Q3. Overview - Rear Child Seat Anchors, Rear Seat

1 - Guide

  • For child seat anchor
  • Quantity: 4
  • Removing and installing. Refer to → Chapter "Child Seat Anchor Guide, Removing and Installing, Rear".
  • Must be secure on the anchor

2 - Cover

  • For child seat anchor
  • Quantity: 4
  • Removing and installing. Refer to → Chapter "Child Seat Anchor Guide, Removing and Installing, Rear".
  • Must be secure on the anchor

3 - Child Seat Anchor

  • Quantity: 4
  • Welded to the floor panel.

Overview - Rear Child Seat Anchors, Rear Seat Backrest

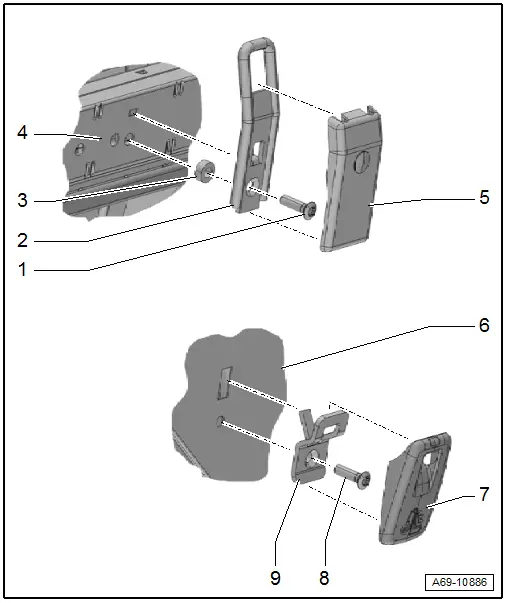

Audi Q3. Overview - Rear Child Seat Anchors, Rear Seat Backrest

1 - Bolt

  • 8 Nm

2 - Center Child Seat Anchor

  • Removing and installing. Refer to → Chapter "Rear Child Seat Anchor, Removing and Installing".

3 - Washer

4 - Rear Seat Backrest

5 - Cover

  • Engage in the child seat anchor and press on it until it engages audibly.

6 - Rear Seat Backrest

7 - Cover

  • Engage in the child seat anchor and press on it until it engages audibly.

8 - Bolt

  • 8 Nm

9 - Outer Child Seat Anchor

  • Quantity: 2
  • Removing and installing. Refer to → Chapter "Rear Child Seat Anchor, Removing and Installing".

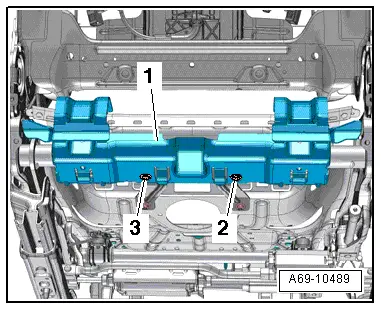

Front Child Seat Anchor, Removing and Installing

Front Child Seat Anchor, Removing and Installing

Removing

- Move the front passenger seat all the way forward and then raise it all the way up.

- Remove the bolts -2- and -3-.

- Remove the child seat anchor -1- rearward from the seat pan.

  Note

For better illustration, the front seat is shown with the cover.

Installing

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Front Child Seat Anchors".

Audi Q3. A69-10489

Front Child Seat Anchor Retaining Plate, Removing and Installing

Removing

- Remove the front seat child seat anchor. Refer to → Chapter "Front Child Seat Anchor, Removing and Installing".

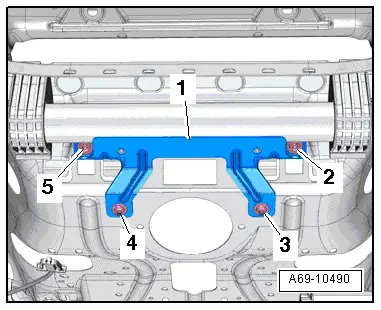

- Remove the bolts -2, 3, 4 and 5-.

- Remove the retaining plate -1- for the child seat anchor from the seat pan.

  Note

For better illustration, the front seat is shown with the cover.

Installing

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Front Child Seat Anchors".

Audi Q3. A69-10490

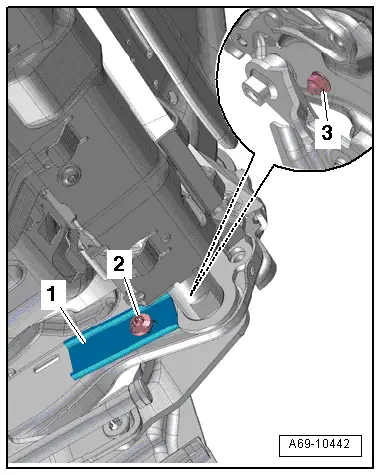

Front Child Seat Anchor Reinforcement, Removing and Installing

Removing

- Move the front passenger seat all the way forward and then raise it all the way up.

- Remove the seat side sill panel trim. Refer to → Chapter "Seat Side Trim on Sill Panel Side, Removing and Installing, Power Front Seat".

- Remove the bolt -2- and counterhold the nut -3-.

- Remove the child seat anchor reinforcement -1- inward.

  Note

For better illustration, the front seat is shown with the cover.

Installing

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Front Child Seat Anchors".

Audi Q3. A69-10442

Rear Child Seat Anchor, Removing and Installing

Child Seat Anchor Guide, Removing and Installing, Rear

Removing

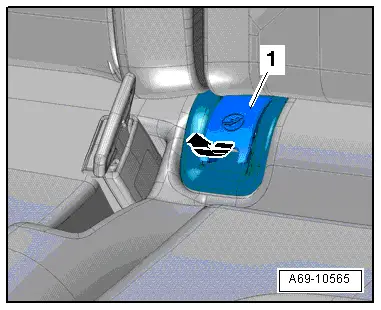

- Unclip the child seat anchor cover -1- from the anchor -arrow- and remove.

Audi Q3. A69-10565

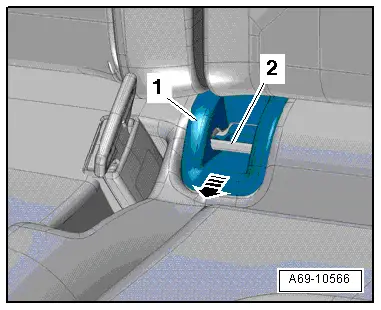

- Push the child seat anchor guide -1-, corresponding to cut-out, downward and disengage it from the anchor -2-.

- Remove the child seat anchor guide forward -arrow-.

Installing

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Rear Child Seat Anchors".

Audi Q3. A69-10566

Rear Child Seat Anchor, Removing and Installing

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-

Removing

- Fold the rear seat backrest forward.

- Carefully unclip the cover -3- using the Trim Removal Wedge -3409- from the child seat anchor -arrow-.

- Remove the bolt -1- and remove the child seat anchor -2- from the rear seat backrest.

Installing

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Rear Child Seat Anchors".

Audi Q3. A69-10936

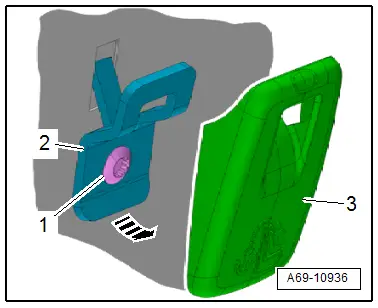

Rear Center Child Seat Anchor, Removing and Installing

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-

Removing

- Fold the rear seat backrest forward.

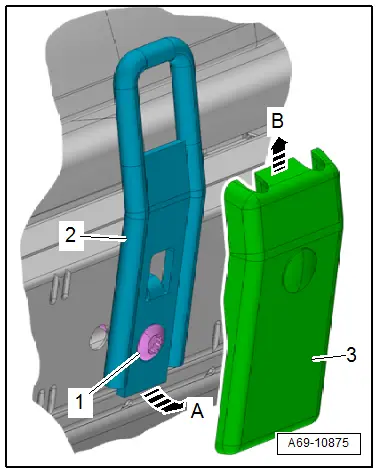

- Carefully unclip the cover -3- using the Trim Removal Wedge -3409- from the child seat anchor -arrow A-.

- Disengage the child seat anchor cover -arrow B- and remove.

- Remove the bolt -1- and remove the child seat anchor -2- from the rear seat backrest.

Installing

Install in reverse order of removal.

Installation notes, for example tightening specifications, replacing components. Refer to → Chapter "Overview - Rear Child Seat Anchors".

Audi Q3. A69-10875
